SLS05 Series LED Flood Light

E-mail:sale@sunlecn.com

Tel:0086-574-88900762

Product Details

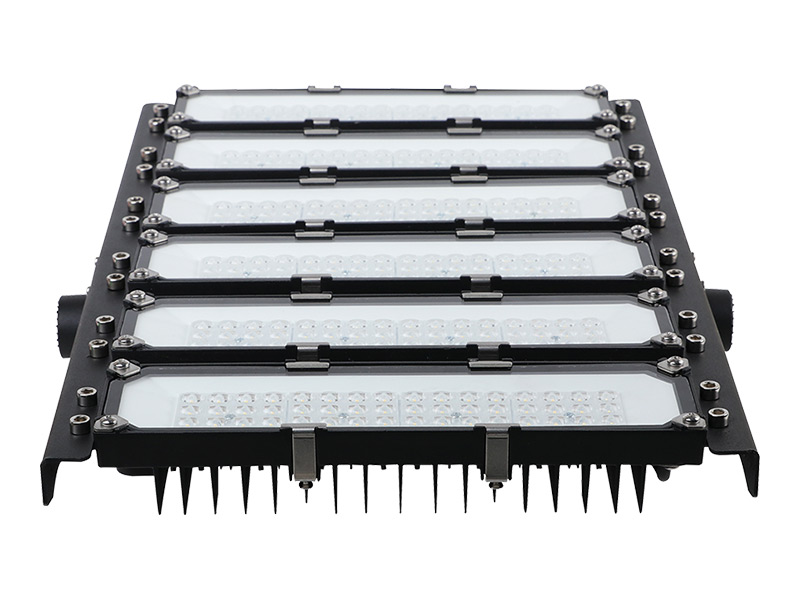

S05 Series LED Flood Light （glass style）

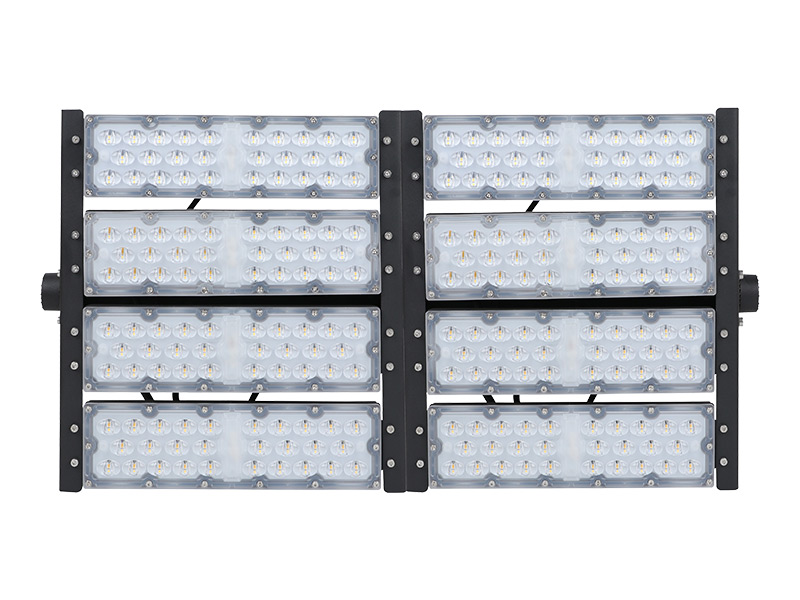

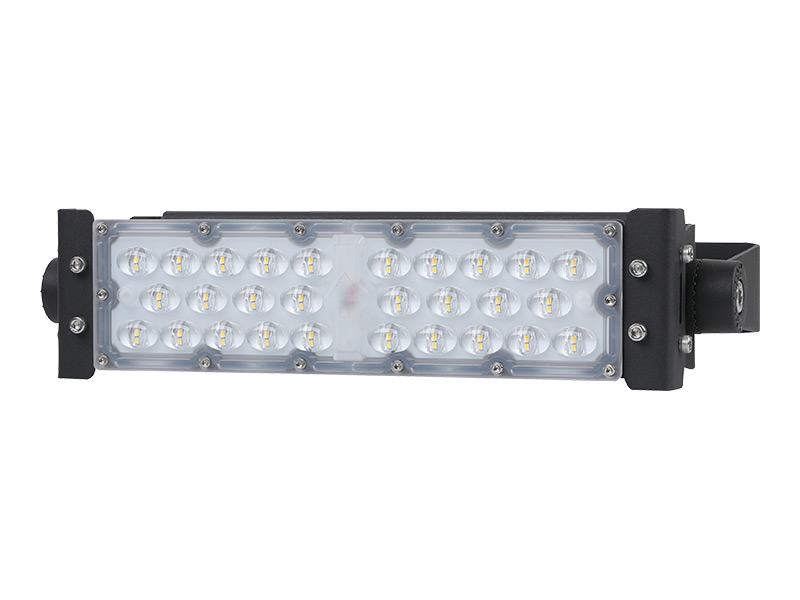

S05 Series LED Flood Light (Lens style)

■Matters needing attention

■Before installing the lighting fixtures, please read this instruction manual carefully.

■The lighting fixtures should be installed, connected and tested by a certified electrician based on the local regulations.

■Lamps should always be installed or replaced carefully.

■Please check the local voltage in accordance with the product requirements before installation.

■Revamping only can be done when the power is off and the lamp is completely cooled down.

■When clean the lamp, make the power off and let it cool down completely, clean the fixture with a soft cloth and a standard PH neutral detergent, stainless steel should be maintained regularly.

■Don't cover the fixtures with flammable materials.

■Replace should be made by the manufacturer or his service agent or certified electrician in order to avoid a hazard.

■Temperature Characteristics T-ambient 25℃

Temperature

Operating -20~+45℃

Storage -40~+60℃

■Electrical Characteristics

Input Voltage:AC100-277V

50/60Hz PF:>0.9

Power Efficiency:≧0.90

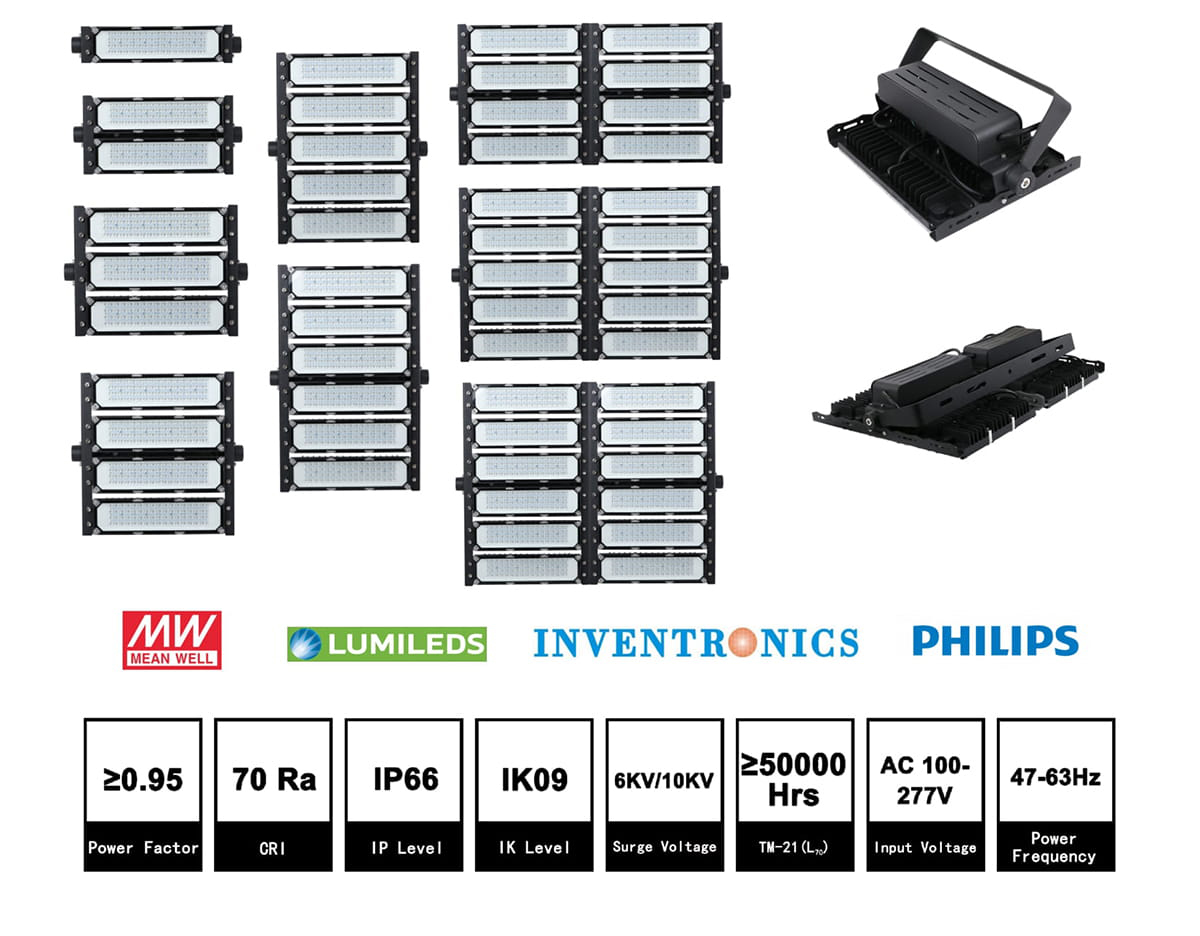

1.Features

■IP66 waterproof/dust proof/explosion proof/IK09

■Pure Aluminum shape good at heat dissipation

■Angle Bracket,easy to install by drill

■Easy replacement and installation

■Philips SMD 3030 Ra>70/SDCM<6

■100,000 times switching cycle before failure

■Total harmonic distortion(THD)<10%

2.Application

COMMERCIAL LIGHTING	PUBLIC LIGHTING	INDUSTRIAL LIGHTING
Tunnel	Tunnel	Manufacture Warehouses
Supermarkets	Airports	Parking lots
Large retailers	Stadium	Exhibition centers
School	Train stations	Gas stations
Billboard	Bus stations	Toll stations etc.
Building	etc.
etc.

3.Product Dimension

Model NO.	Size L(mm)	Size W(mm)	Size H(mm)
SLS05-15	85	320.7	125
SLS05-110	170	320.7	125
SLS05-115	255	320.7	125
SLS05-120	340	320.7	125
SLS05-125	425	320.7	125
SLS05-130	510	320.7	125

Model NO.	Size L(mm)	Size W(mm)	Size H(mm)
SLS05-140	510	681	125
SLS05-150	425	681	125
SLS05-160	340	681	125

Mounting hole size

4.Parameter (Lens style)

Model NO.	Power(W)	Light Source	LED QTY (PCS)	Lens(PCS)	CCT(K)	Lumen(lm/W)	CRI
SLS05-15	50	3030(5050)	56/28	1	4000k	130/150	＞70
SLS05-110	100	3030(5050)	112/56	2	4000k	130/150	＞70
SLS05-115	150	3030(5050)	168/54	3	4000k	130/150	＞70
SLS05-120	200	3030(5050)	224/112	4	4000k	130/150	＞70
SLS05-125	250	3030(5050)	280/140	5	4000k	130/150	＞70
SLS05-130	300	3030(5050)	336/168	6	4000k	130/150	＞70
SLS05-140	400	3030(5050)	448/224	8	4000k	130/150	＞70
SLS05-150	500	3030(5050)	560/280	10	4000k	130/150	＞70
SLS05-160	600	3030(5050)	672/336	12	4000k	130/150	＞70

Parameter (glass style)

Model NO.	Power(W)	Light Source	LED QTY (PCS)	Lens(PCS)	CCT(K)	Lumen(lm/W)	CRI
SLS05-15	50	3030(5050)	64/32	4	4000k	120/140	＞70
SLS05-110	100	3030(5050)	128/64	8	4000k	120/140	＞70
SLS05-115	150	3030(5050)	192/96	12	4000k	120/140	＞70
SLS05-120	200	3030(5050)	256/128	16	4000k	120/140	＞70
SLS05-125	250	3030(5050)	320/160	20	4000k	120/140	＞70
SLS05-130	300	3030(5050)	384/192	24	4000k	120/140	＞70
SLS05-140	400	3030(5050)	512/256	32	4000k	120/140	＞70
SLS05-150	500	3030(5050)	640/320	40	4000k	120/140	＞70
SLS05-160	600	3030(5050)	768/384	48	4000k	120/140	＞70

Light distribution curve selection

5.Installation

A.Place the lamp in the corresponding mounting position,align the mounting hole,insert the screw,

B.Tighten the screw with a wrench and adjust the lightin gangle

C.Connect input cord and keep waterproof.

D.When finish above A,B,and C,pls turn on for test,If light isn 't turn on,pls check the related wiring.If it is still not resolved,contact your local sales agent.

6.Packaging

Packing Data

Model No	Sningle BOX	Pcs/CTN	N.W/PCS(kg)	G.W/CTN(kg)	Meas(mm)
SLS05-15	1	1	3.35	4.1	110340140
SLS05-110	1	1	4.5	5.8	200340140
SLS05-115	1	1	5.7	6.5	280340140
SLS05-120	1	1	6.8	7.9	360340140
SLS05-125	1	1	7.9	8.8	450340140
SLS05-130	1	1	9.3	10.2	530340140
SLS05-140	1	1	12.9	13.9	690X360X160
SLS05-150	1	1	15.2	16.2	690X440X160
SLS05-160	1	1	17.5	18.7	690X540*160

7.Attention

This specification is for reference only,we reserve the right to change without notice.
