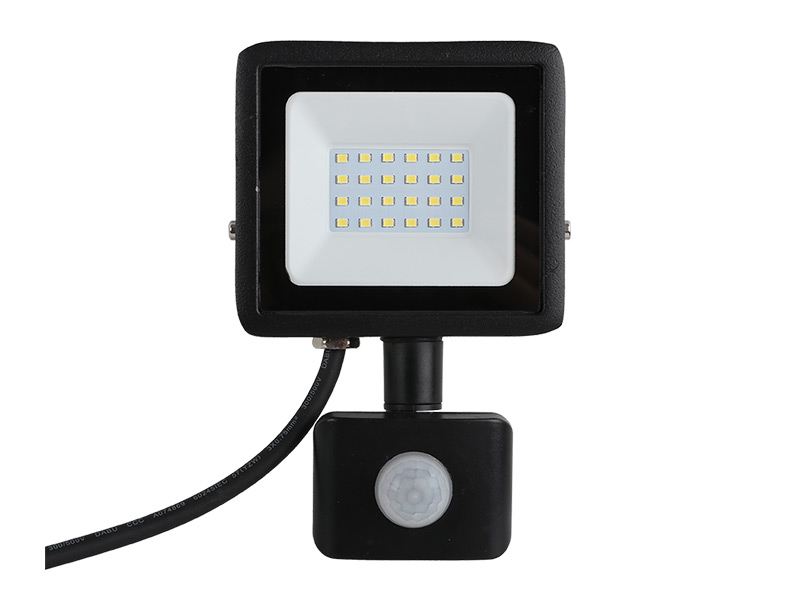

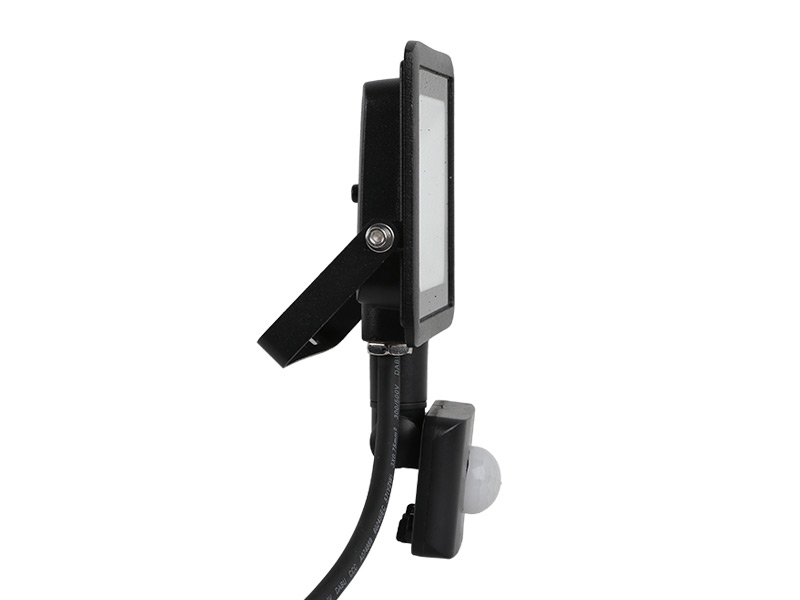

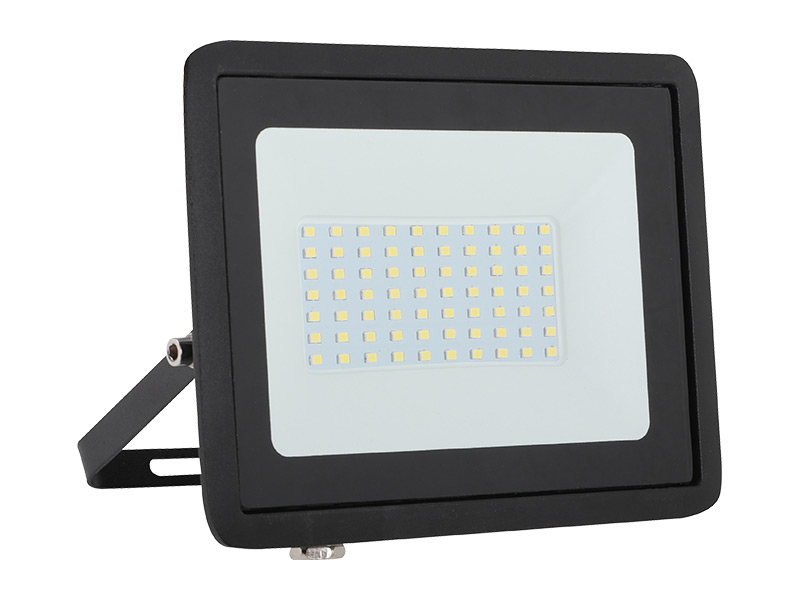

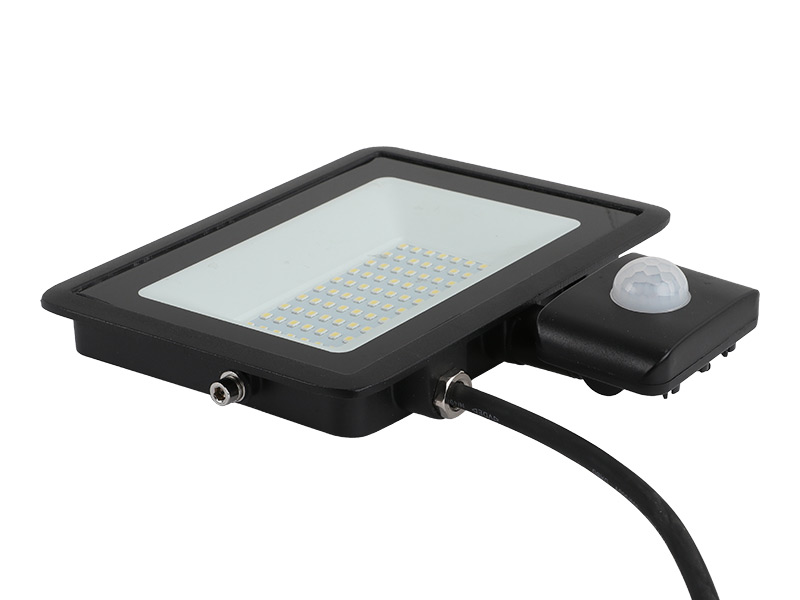

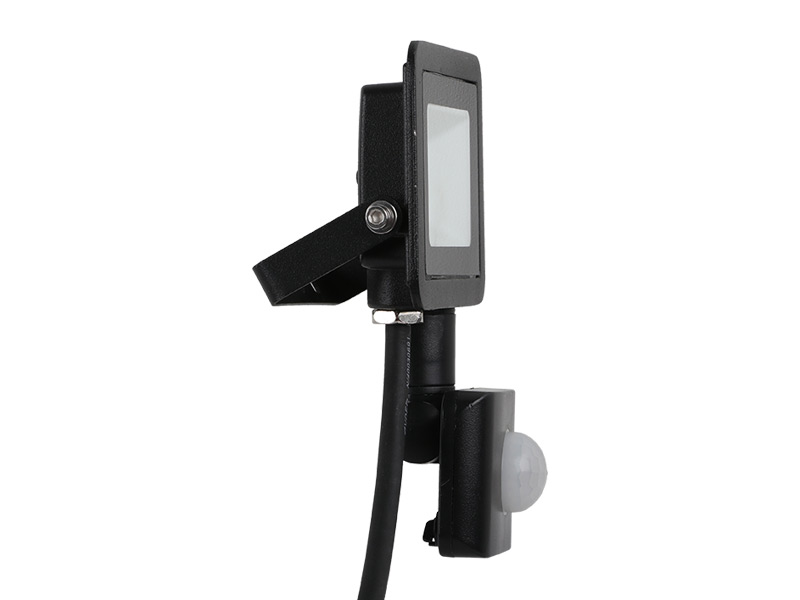

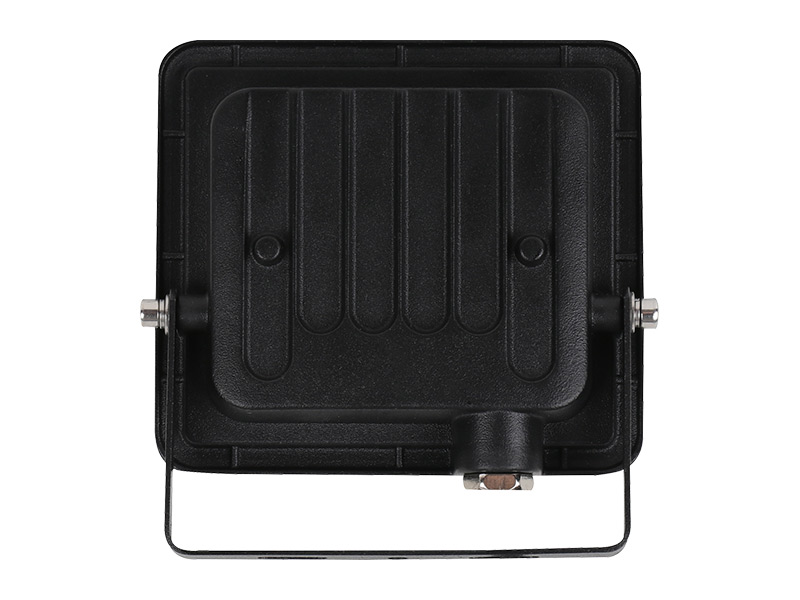

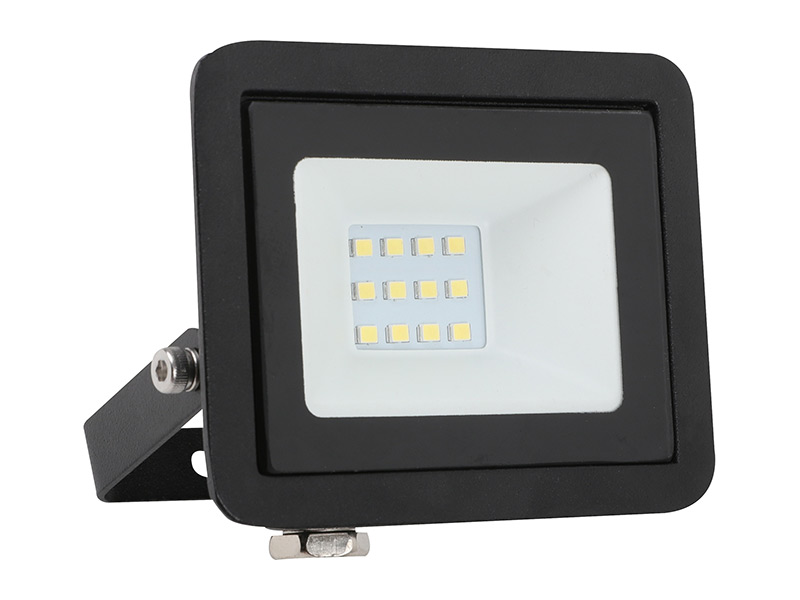

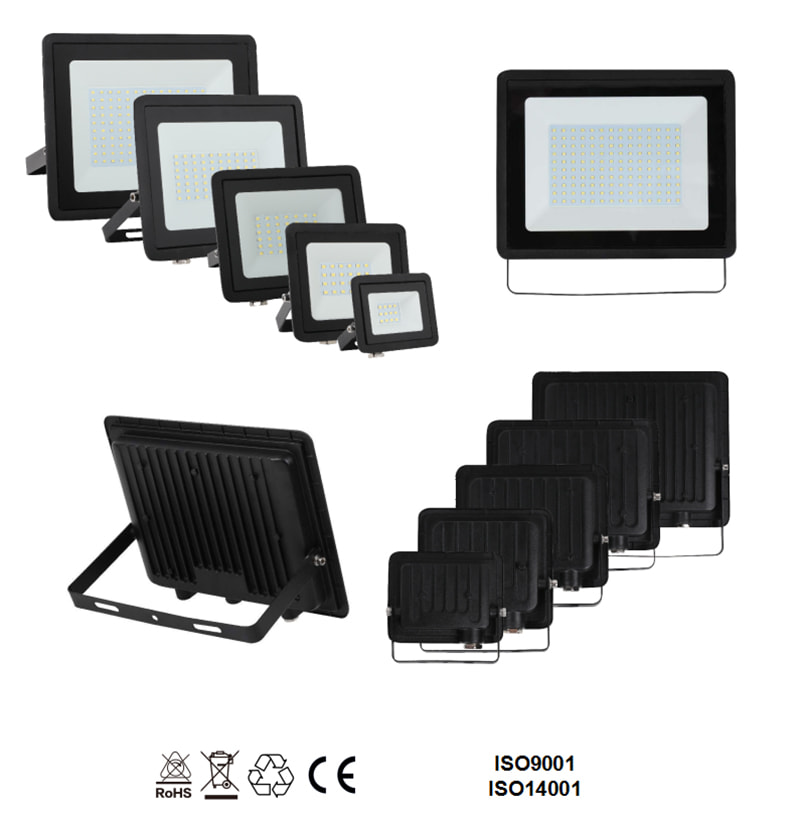

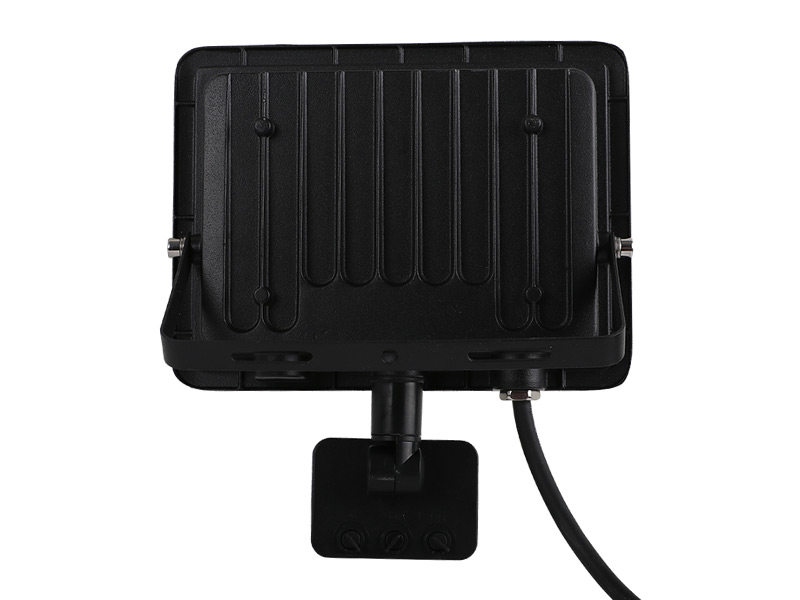

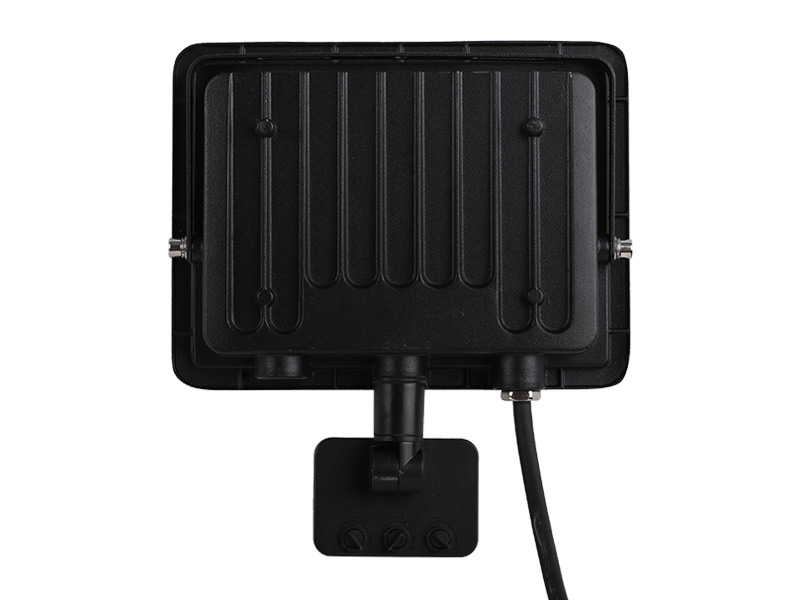

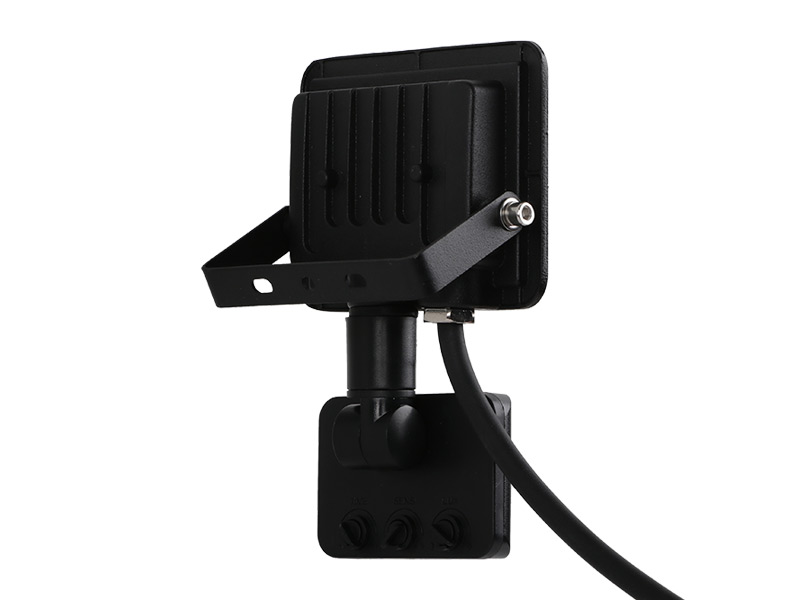

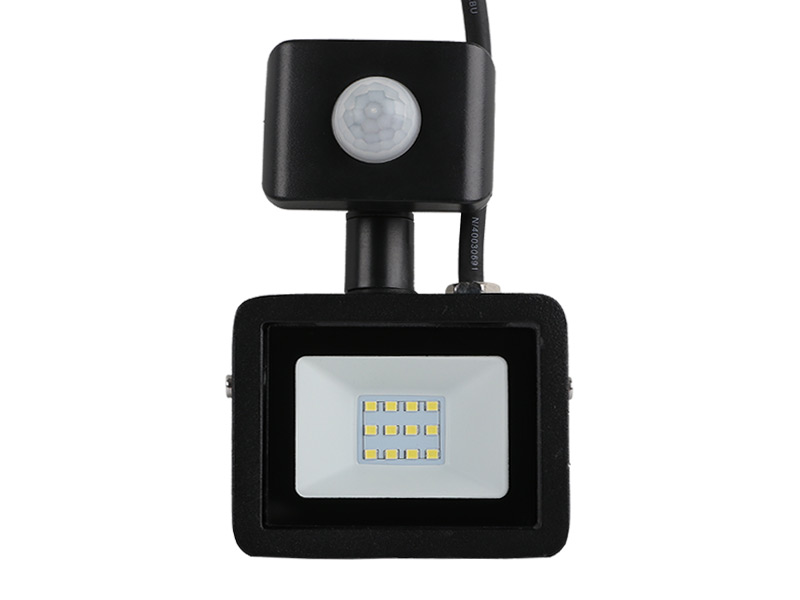

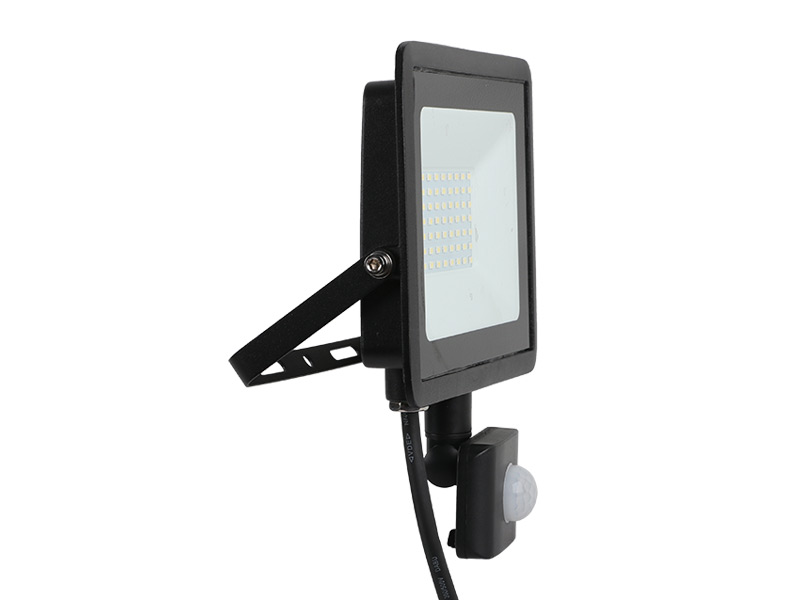

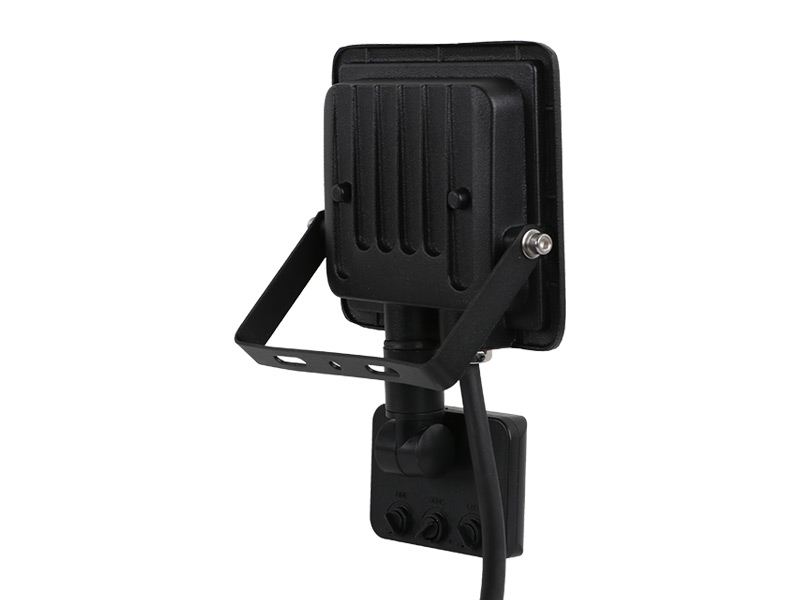

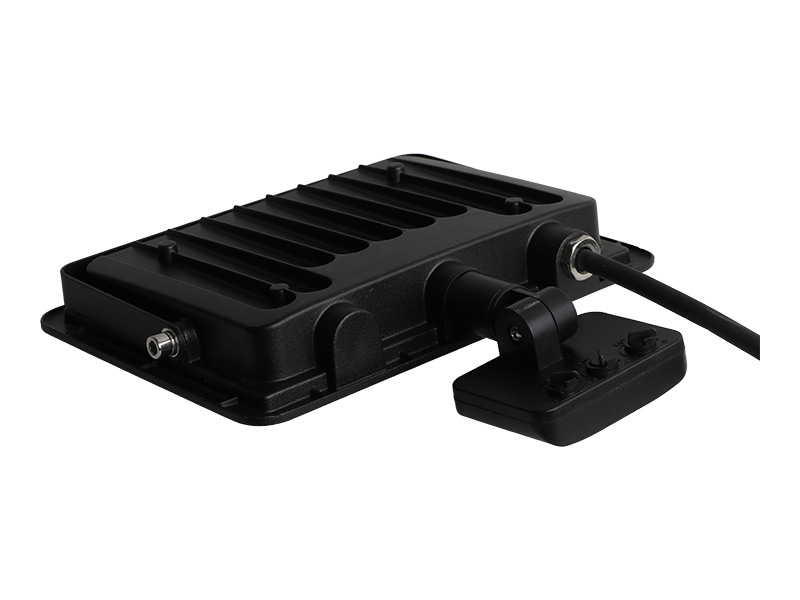

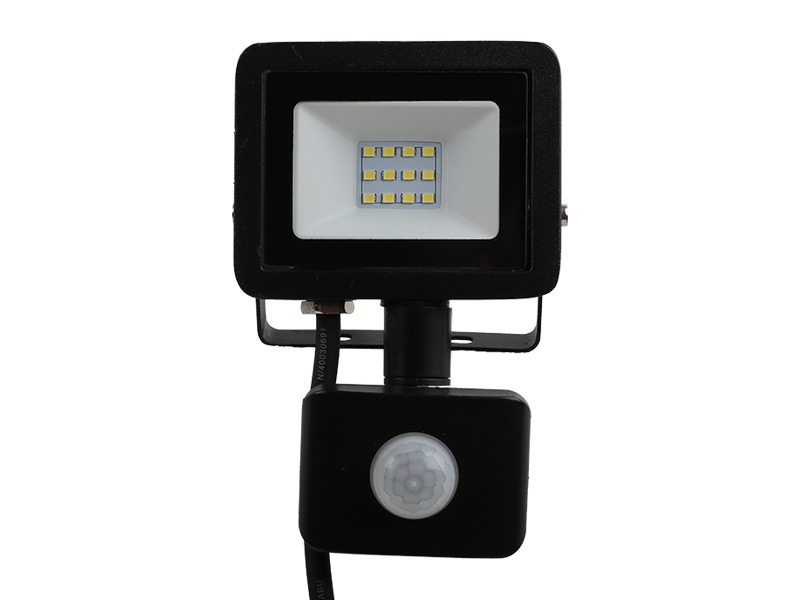

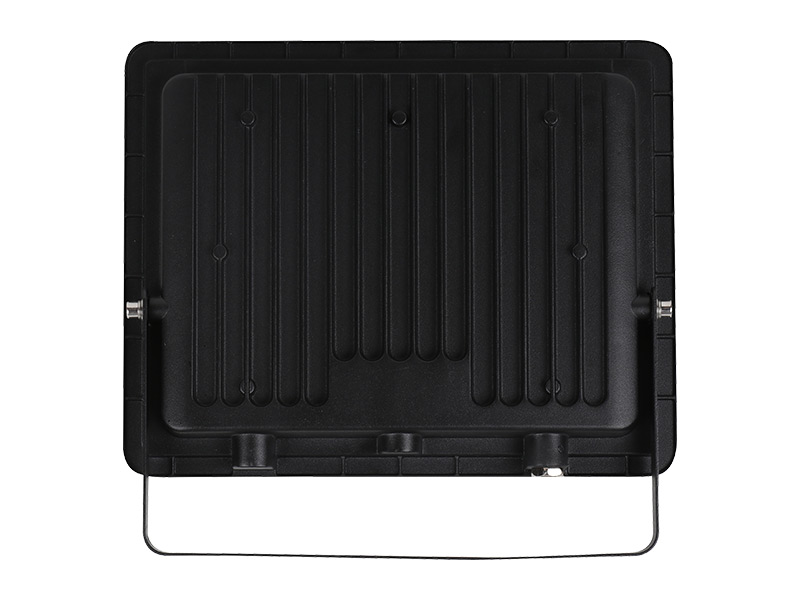

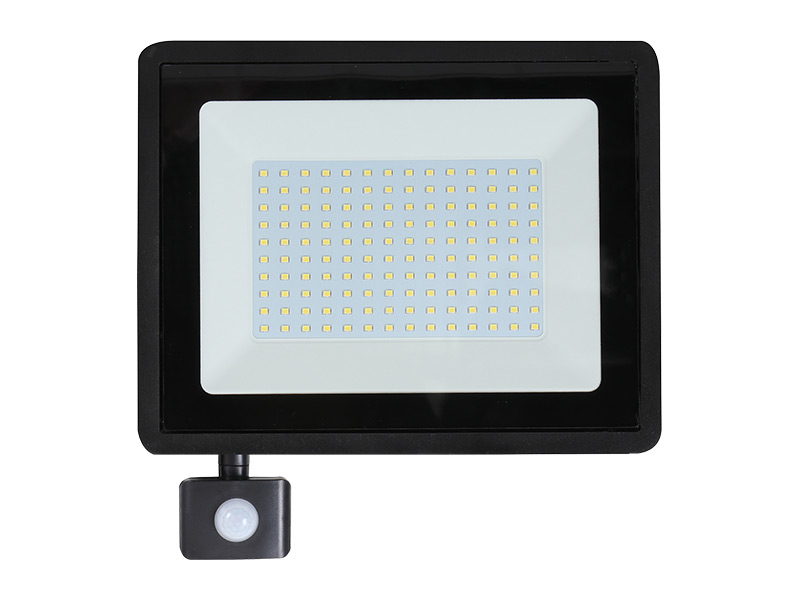

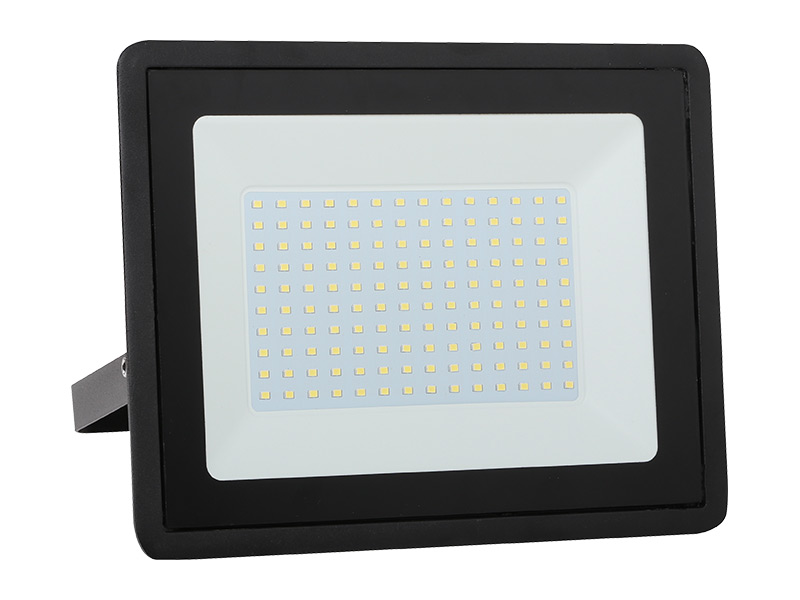

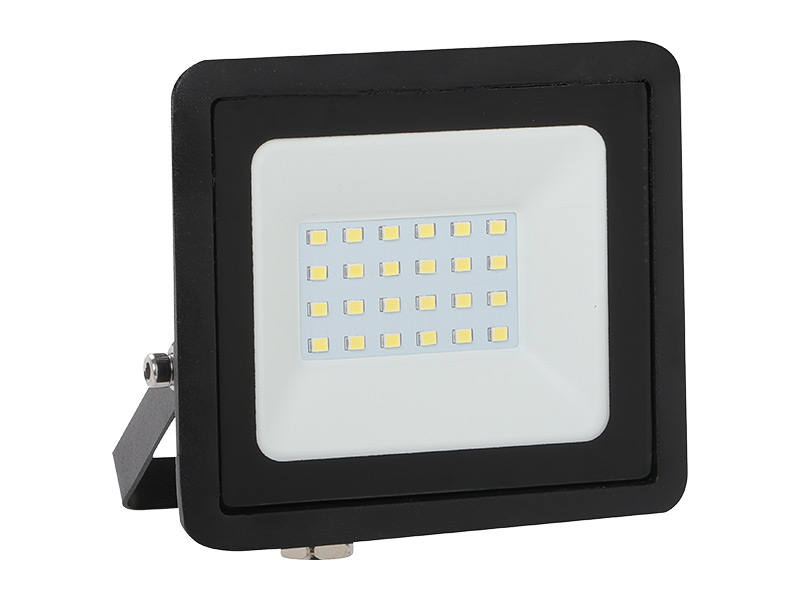

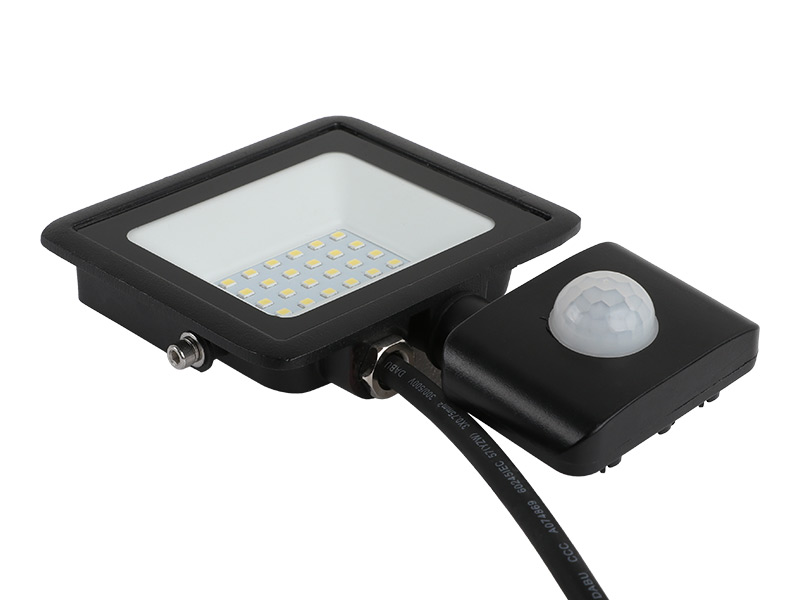

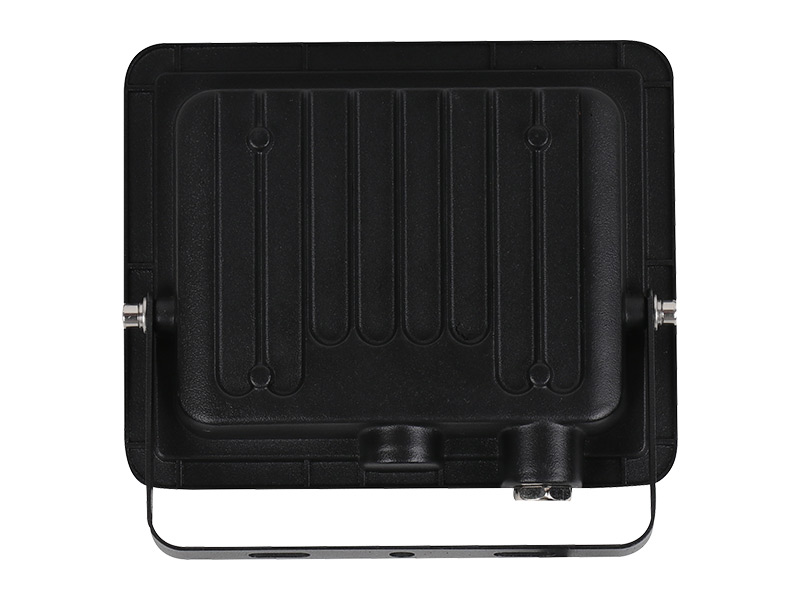

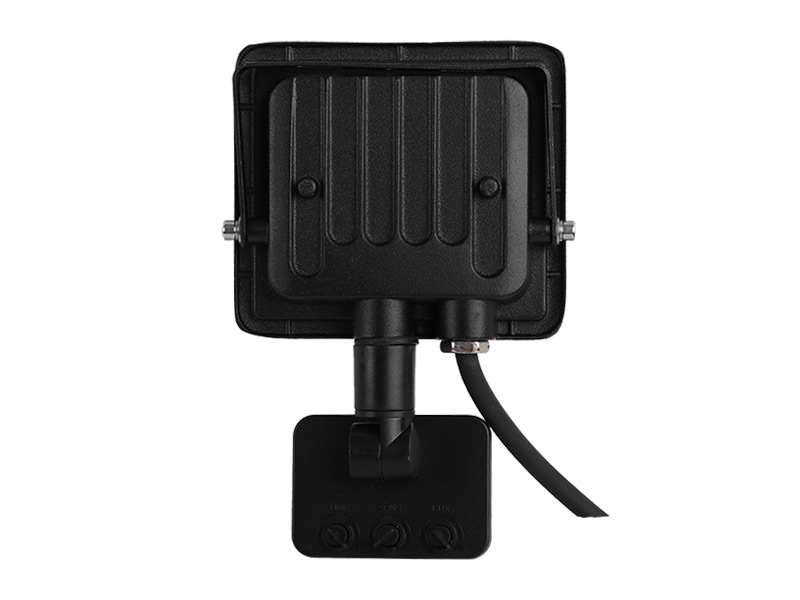

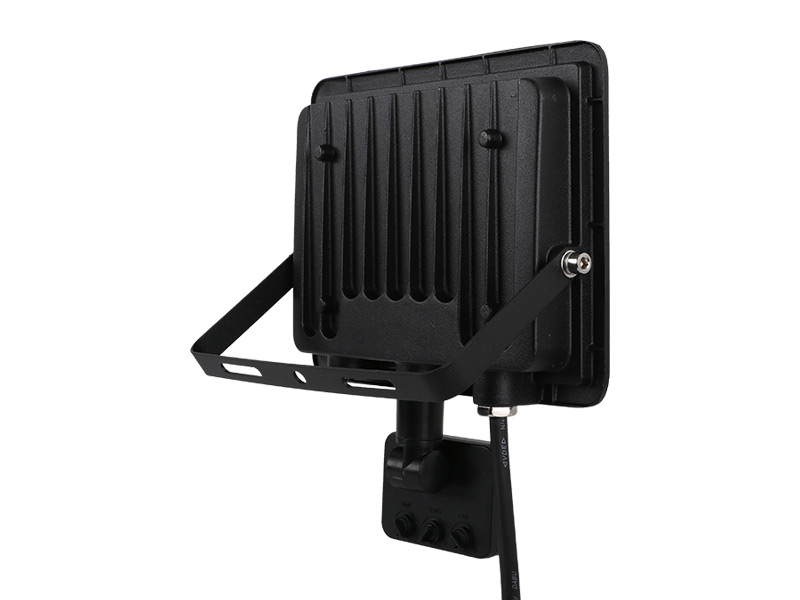

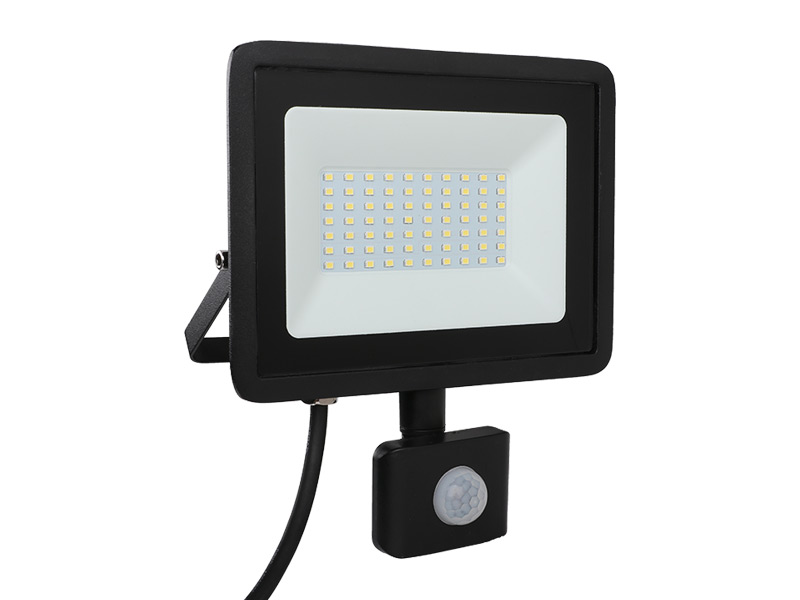

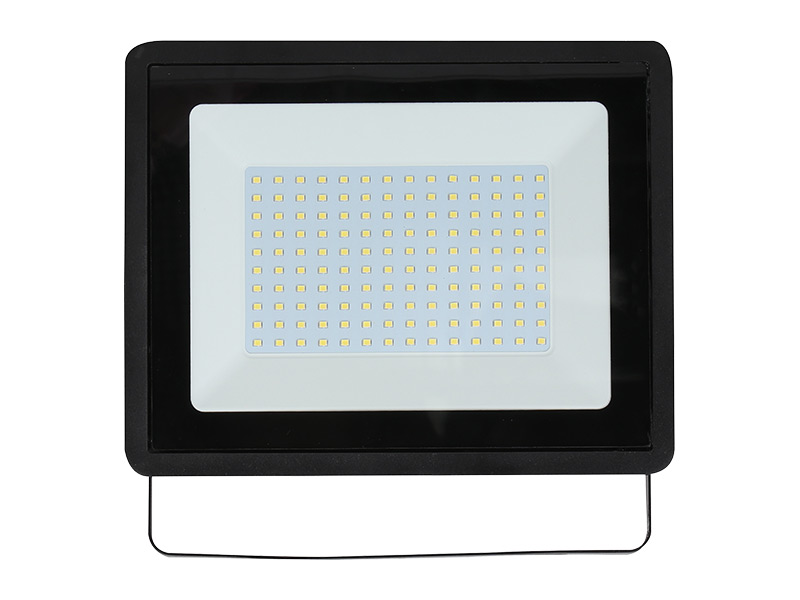

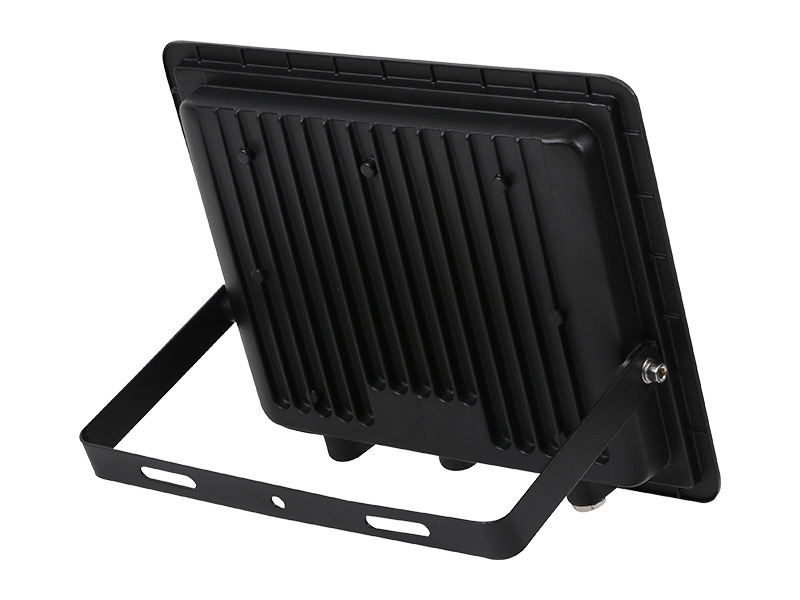

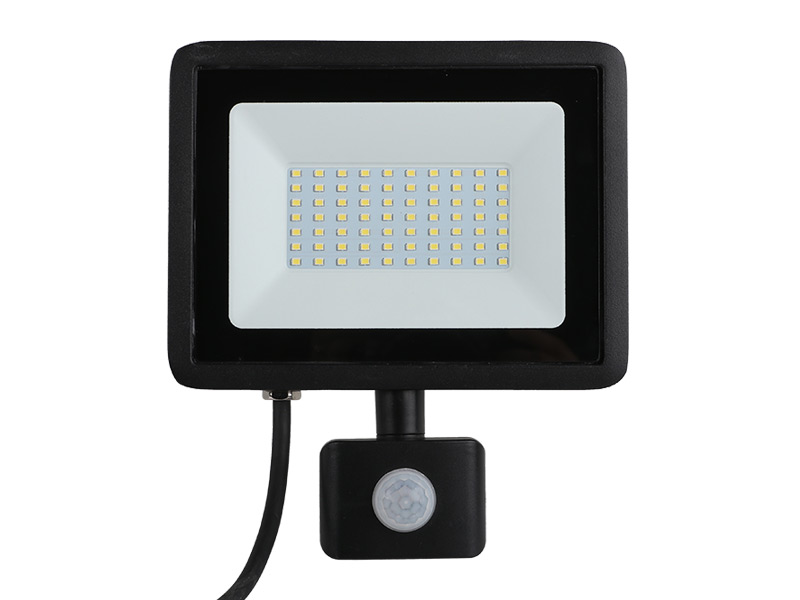

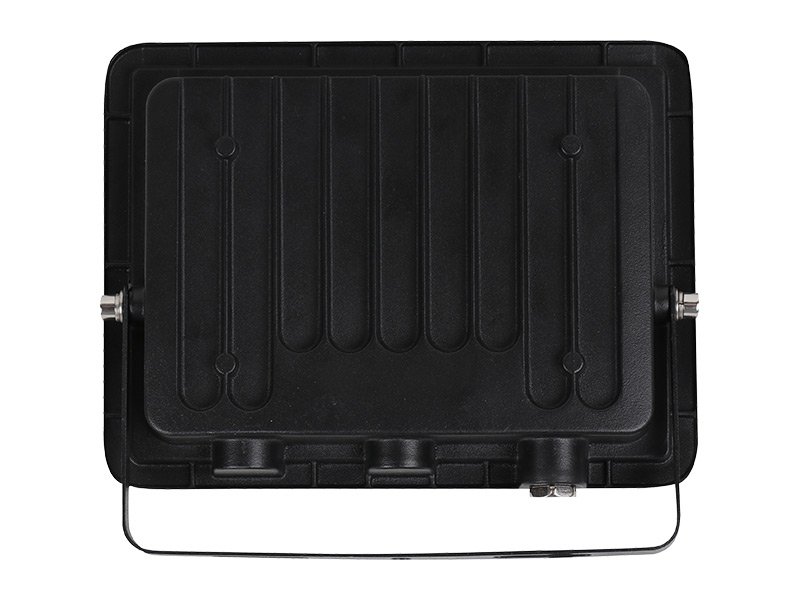

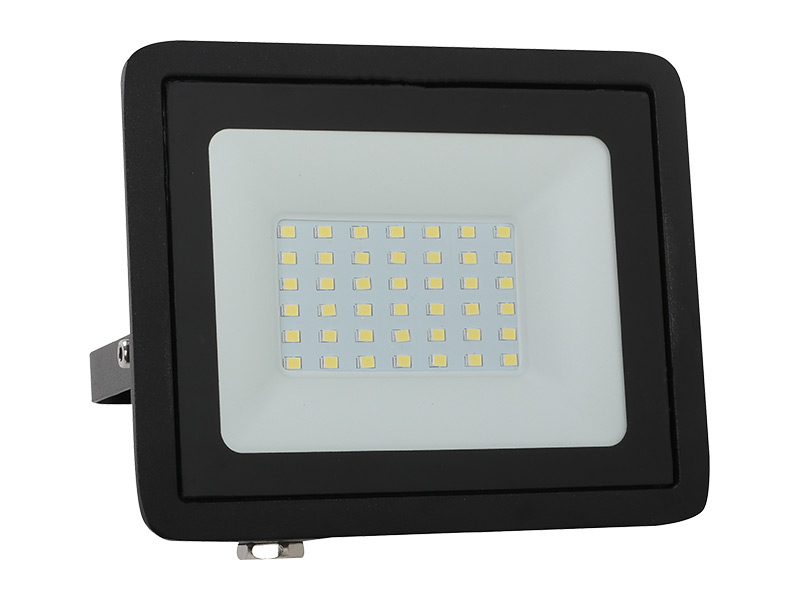

SLFAP10 Series LED Flood Light

E-mail:sale@sunlecn.com

Tel:0086-574-88900762

Product Details

■Matters needing attention

■Before installing the lighting fixtures, please read this instruction manual carefully.

■The lighting fixtures should be installed, connected and tested by a certified electrician based on the local regulations.

■Lamps should always be installed or replaced carefully.

■Please check the local voltage in accordance with the product requirements before installation.

■Revamping only can be done when the power is off and the lamp is completely cooled down.

■When clean the lamp, make the power off and let it cool down completely, clean the fixture with a soft cloth and a standard PH neutral detergent, stainless steel should be maintained regularly.

■Don't cover the fixtures with flammable materials.

■Replace should be made by the manufacturer or his service agent or certified electrician in order to avoid a hazard.

■Temperature Characteristics T-ambient 25℃

Temperature

Operating -20~+45℃

Storage -40~+60℃

■Electrical Characteristics

Input Voltage:AC100-240V/220-240Vac

50/60Hz

Power Efficiency:≧0.90

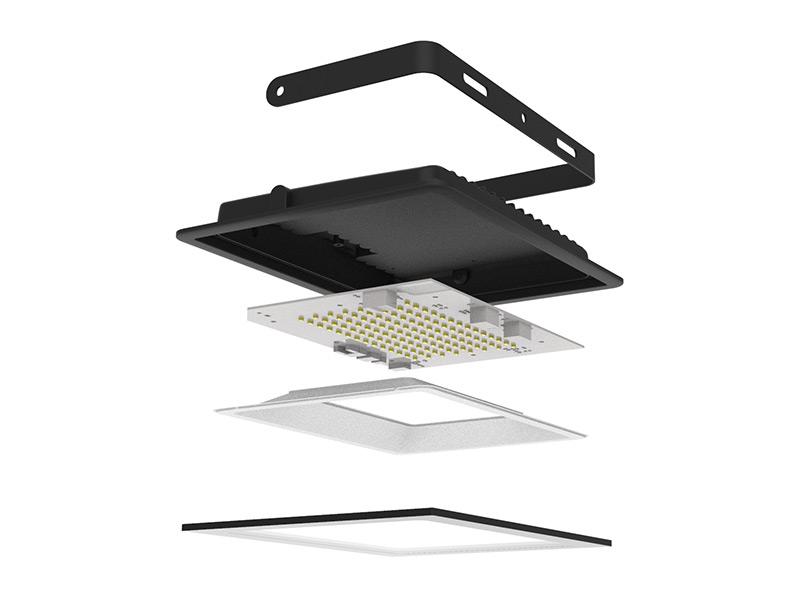

1.Features

■IP65 waterproof/dust proof/explosion proof/IK08

■Pure Aluminum shape good at heat dissipation

■Angle Bracket,easy to install by drill

■Easy replacement and installation

■SMD 2835 Ra>80/SDCM<6

■50,000 times switching cycle before failure

■Total harmonic distortion(THD)<20%

■Lightning Surge 4KV

■Insulation Resistance 2KV

2.Application

COMMERCIAL LIGHTING	PUBLIC LIGHTING	INDUSTRIAL LIGHTING
Large retailers	Airports	Manufacture Warehouses
School	Stadium	Parking lots
Billboard	Train stations	Exhibition centers
Building	Bus stations	Gas stations
etc.	etc.	Toll stations etc.

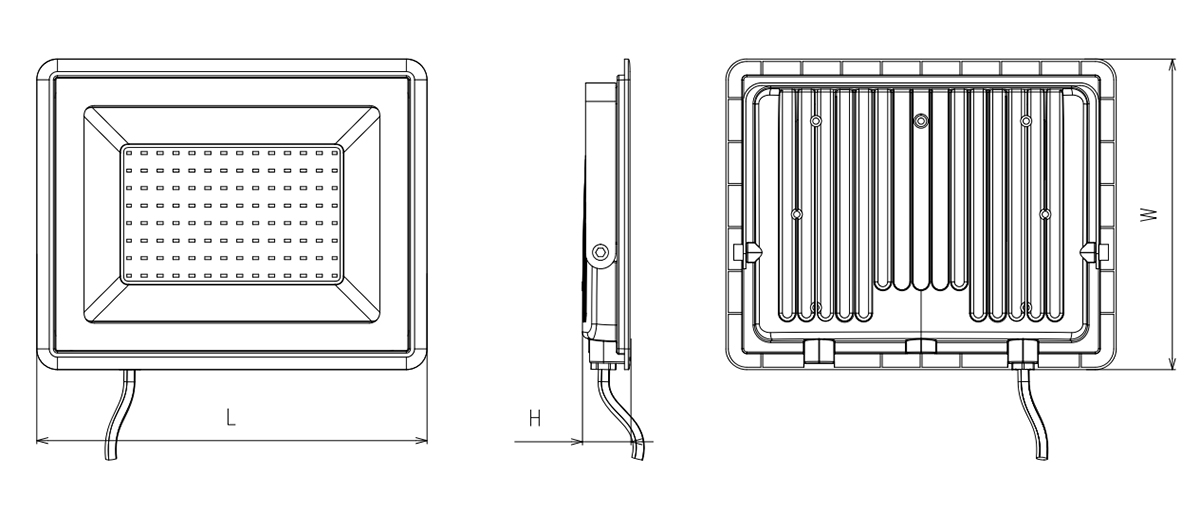

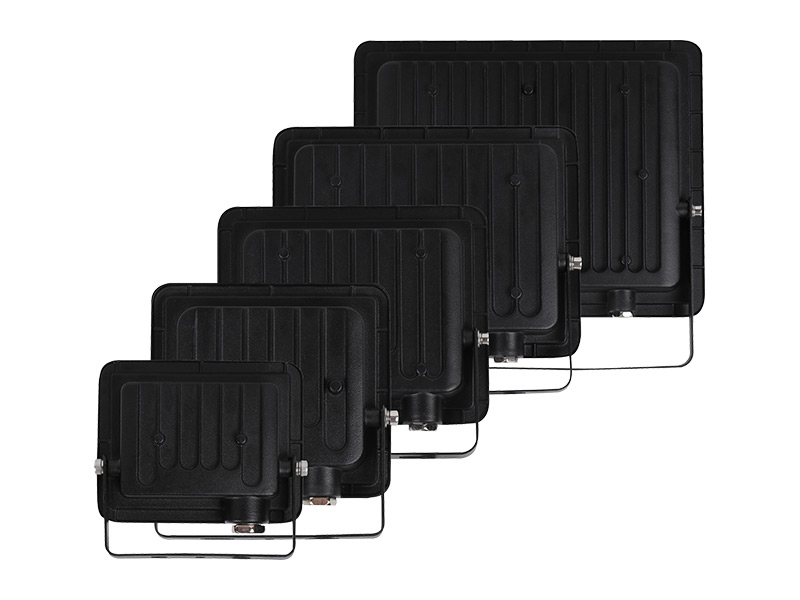

3.Product Dimension

Model NO.	Size L(mm)	Size W(mm)	Size H(mm)
FAP101-10W	92	73	22.8
FAP102-20W	106.2	95.2	23
FAP103-30W	136	111	26.1
FAP105-50W	178	135.6	28.5
FAP1010-100W	245	195	29.8

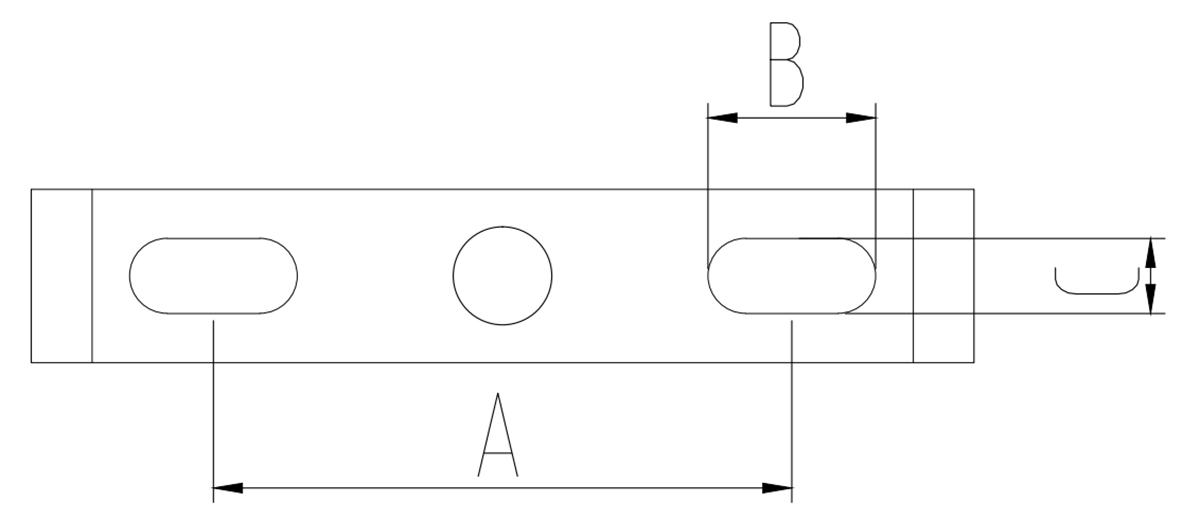

Mounting hole size

Model NO.	Size A(mm)	Size B(mm)	Size C(mm)
FAP101-10W	35.5	7.5	4.3
FAP102-20W	45	15	4.5
FAP103-30W	59	15	5.2
FAP105-50W	82.6	30	6.3
FAP1010-100W	120	30	6.5

4.Parameter

AC 220-240V Not certified

Model NO.	Power(W)	PF	Rated Input Current （A）±10%	Light Source	LED QTY (PCS)	CCT(K)	Lumen (lm/W)	CRI
FAP101-10W	10	>0.9	0.05@AC230V	2835	12	6500k	80	＞80
FAP102-20W	20	>0.9	0.14@AC230V	2835	24	6500k	80	＞80
FAP103-30W	30	>0.9	0.14@AC230V	2835	36	6500k	80	＞80
FAP105-50W	50	>0.9	0.23@AC230V	2835	60	6500k	80	＞80
FAP1010-100W	100	>0.9	0.44@AC230V	2835	125	6500k	80	＞80

AC 220-240V EMC and ERP

Model NO.	Poer(W)	PF	Rated Input Current （A）±10%	Light Source	LED QTY (PCS)	CCT(K)	Lumen lm	CRI
FAP101-10W	10	>0.7	0.05@AC230V	2835	12	6500k	940/F	＞80
FAP102-20W	20	>0.7	0.14@AC230V	2835	24	6500k	1900/F	＞80
FAP103-30W	30	>0.9	0.14@AC230V	2835	42	6500k	2670/F	＞80
FAP105-50W	50	>0.9	0.23@AC230V	2835	56	6500k	4550/F	＞80
FAP1010-100W	100	>0.9	0.44@AC230V	2835	112	6500k	9300/F	＞80

AC 100-240V DOB Low PF

Model NO.	Power(W)	PF	Rated Input Current （A）±10%	Light Source	LED QTY (PCS)	CCT(K)	Lumen (lm/W)	CRI
FAP101-10W	10	>0.5	0.09@AC127V/0.05@AC230V	2835	12	6500k	100	＞80
FAP102-20W	20	>0.5	0.16@AC127V/0.14@AC230V	2835	24	6500k	100	＞80
FAP103-30W	30	>0.5	0.25@AC127V/0.14@AC230V	2835	36	6500k	100	＞80
FAP105-50W	50	>0.5	0.42@AC127V/0.23@AC230V	2835	60	6500k	100	＞80
FAP1010-100W	100	>0.5	0.8@AC127V/0.44@AC230V	2835	108	6500k	100	＞80

AC 100-240V DOB high PF

Model NO.	Power(W)	PF	Rated Input Current （A）±10%	Light Source	LED QTY (PCS)	CCT(K)	Lumen (lm/W)	CRI
FAP101-10W	10	>0.9	0.09@AC127V/0.05@AC230V	2835	12	6500k	100	＞80
FAP102-20W	20	>0.9	0.16@AC127V/0.14@AC230V	2835	24	6500k	100	＞80
FAP103-30W	30	>0.9	0.25@AC127V/0.14@AC230V	2835	36	6500k	100	＞80
FAP105-50W	50	>0.9	0.42@AC127V/0.23@AC230V	2835	60	6500k	100	＞80
FAP1010-100W	100	>0.9	0.8@AC127V/0.44@AC230V	2835	108	6500k	100	＞80

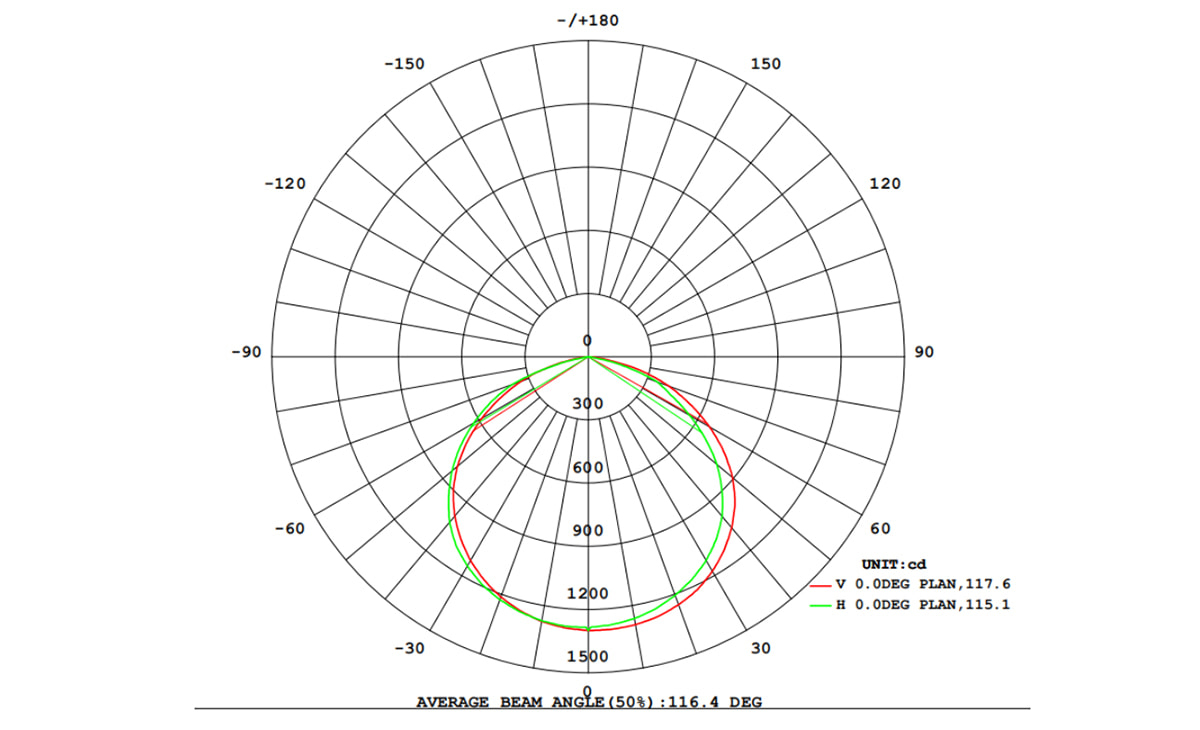

Light distribution curve selection

5.Installation

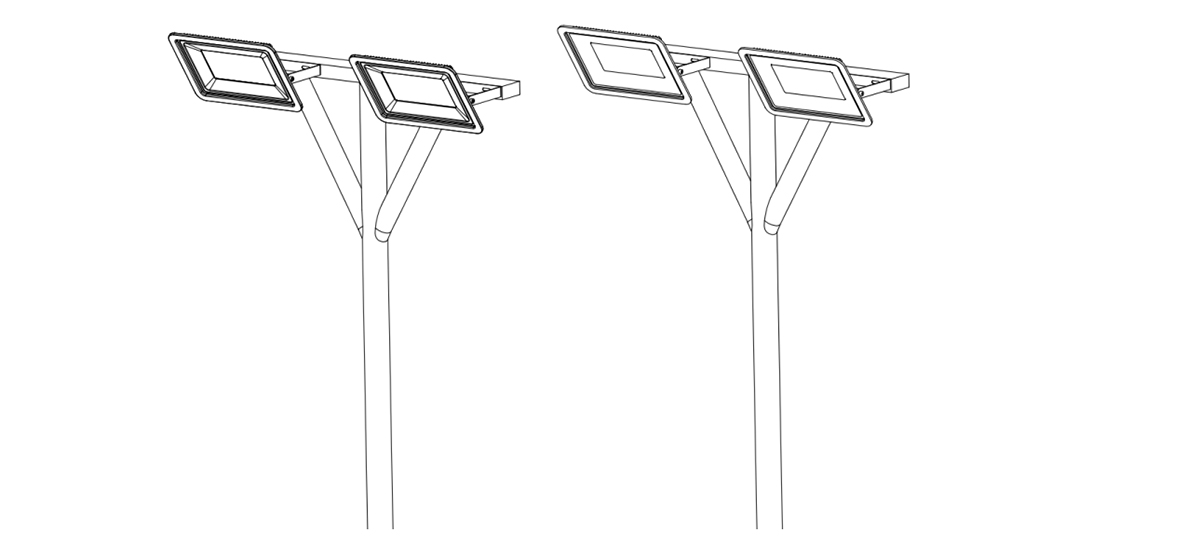

For Example

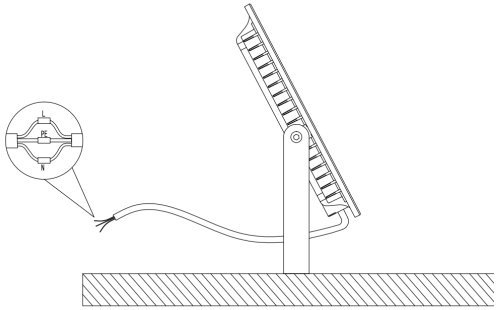

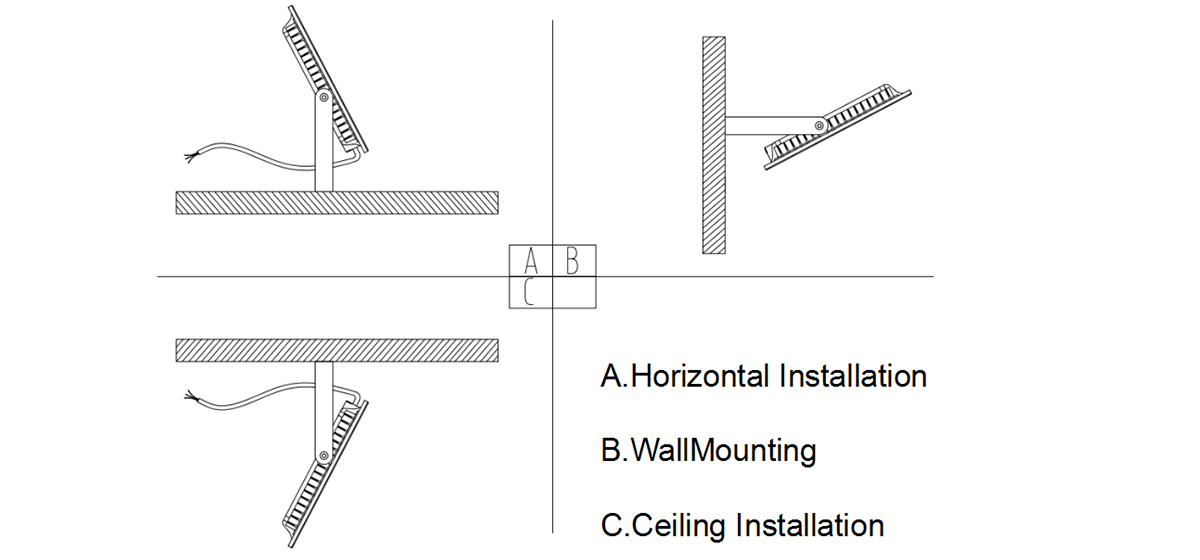

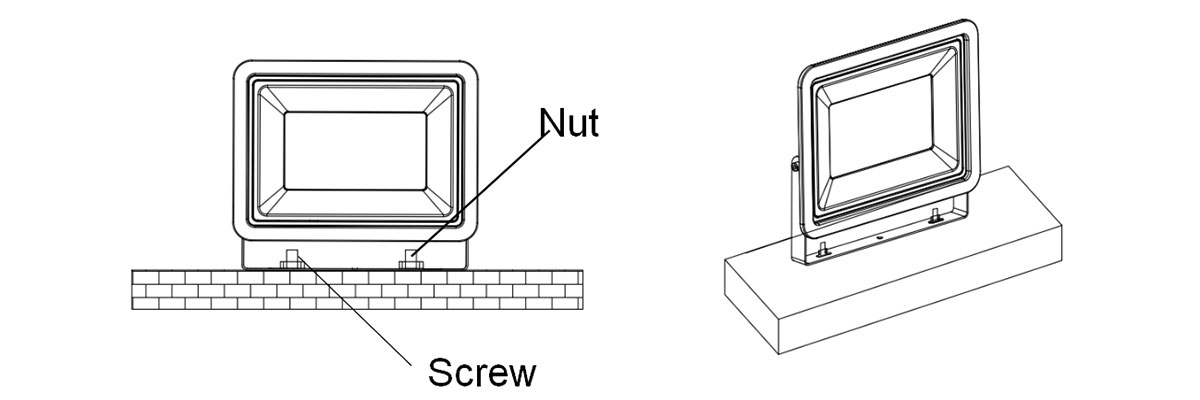

A.Place the lamp in the corresponding mounting position,align the mounting hole,insert the screw,

B.Tighten the screw with a wrench and adjust the lightin gangle

C.Connect input cord and keep waterproof.

D.When finish above A,B,and C,pls turn on for test,If light isn't turn on,pls check the related wiring.If it is still not resolved,contact your local sales agent.

6.Packaging

Packing Data

Model No	Sningle BOX	Pcs/CTN	N.W/PCS(kg)	G.W/CTN(kg)	Meas(mm)
FAP101-10W	1058535		0.15
FAP102-20W	12010535		0.2
FAP103-30W	15012535		0.3
FAP105-50W	19014540		0.5
FAP1010-100W	26020540		0.95

7.Attention

This specification is for reference only,we reserve the right to change without notice.
