SLR14 Series LED Street Light Manufacturers

SLR14 Series LED Street Light

SLR14 Series LED Street Light

E-mail:sale@sunlecn.com

Tel:0086-574-88900762

Product Details

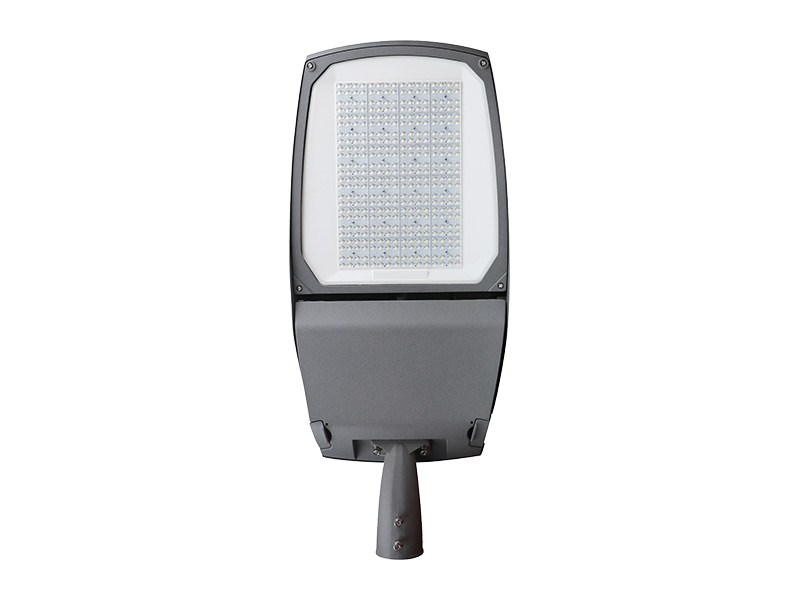

SLR14 Diagram

■Matters needing attention

■Before installing the lighting fixtures, please read this instruction manual carefully.

■The lighting fixtures should be installed, connected and tested by a certified electrician based on the local regulations.

■Lamps should always be installed or replaced carefully.

■Please check the local voltage in accordance with the product requirements before installation.

■Revamping only can be done when the power is off and the lamp is completely cooled down.

■When clean the lamp, make the power off and let it cool down completely, clean the fixture with a soft cloth and a standard PH neutral detergent, stainless steel should be maintained regularly.

■Don't cover the fixtures with flammable materials.

■Replace should be made by the manufacturer or his service agent or certified electrician in order to avoid a hazard.



■Temperature Characteristics T-ambient 25℃

Temperature

Operating -20~+55℃

Storage -40~+60℃



■Electrical Characteristics

Input Voltage:AC100-277V

50/60Hz PF:>0.9

Power Efficiency:≧0.90





1.Features

■IP66 waterproof/dust proof/explosion proof/IK09

■Aluminum shape good at heat dissipation

■The lamp post can be adjusted to plus or minus 15 degrees It can also be installed vertically

■Philips SMD 3030/ 5050/ Ra>70/SDCM<6

■100,000 times switching cycle before failure

■Total harmonic distortion(THD)<10%

■Excellent post light control design, the whole lamp can achieve T II-M, T III-M,That's our advantage

■Pass 3G vibration test





2.Application



ROAD LIGHTING

It is mainly applied to the road lighting of urban expressway,secondary trunk road, branch road, factory, school, garden, various residential communities and courtyards. The installation height is 6-13m and the installation torque is 16Nm.



3.Product Dimension



Model NO.

Size L(mm)

Size W(mm)

Size H(mm)

Support pole diameter

R14-110

645

257

147

60

R14-120

790.4

305

147

60

R14-130

890

361

163

60/70



4.Parameter



Model NO.

Power(W)

Light Source

LED QTY (PCS)

Lens(PCS)

CCT(K)

Lumen(lm/W)

CRI

R14-110-80W

80

3030(5050)

144/51

9

4000k

130/150

>70

R14-110-100W

100

3030(5050)

144/54

9

4000k

130/150

>70

R14-120-120W

120

3030(5050)

192/72

12

4000k

130/150

>70

R14-120-150W

150

3030(5050)

192/72

12

4000k

130/140

>70

R14-120-180W

180

3030(5050)

240/90

15

4000k

130/150

>70

R14-120-200W

200

3030(5050)

240/120

15

4000k

130/150

>70

R14-120-250W

250

3030(5050)

192/120

20

4000k

130/150

>70

R14-120-300W

300

3030(5050)

192/144

24

4000k

130/150

>70



Erp Technical Specification



Item

Symbol

specification/Data

Color Index

CRI

Ra>70

Luminous Efficacy

lm/W

130--160 lm/W

Energy efficiency Class

/

A++

Color consistency in level

/

Max.6SDCM

THD

/

<15%

Starting Time

S

<0.5S

Switching cycle before failure

/

>100,000times

Premature failure rate@1000h

/

0

Lifespan

H

>50000Hrs



Light distribution curve selection

Multiple Light Distribution Options

Street light should fit with a wide range of applications, such as highway, express way, roadway, avenue, walking path or parking lot lightings. Considering this, SUNLE provides different light distribuTIon lens for the R14 Series street light to achieve best lighting effect in different applications. SUNLE follows the North American IESNA standard in providing the optional lens width ,TypeI, Type II ,Type III and Type V.

Type I is suitable for walking path with 1 lane, Type II is for 2 lanes and Type III is for even more wider road, Type V is for parking lot.

SUNLE selects the most suitable lens for its customers according to the detailed parameters project by project.

TYPE I

The Type I lens of sunle R14 series street light. In the IESNA Standard, The Type I distribution is great for lighting walkways, paths and sidewalks. It is generally applicable to where the mounting height is approximately equal to the roadway width.



TYPE II

The Type II lens of sunle R14 series street light. In the IESNA Standard, the Type II distribution is used for wide walkways, on ramps and entrance roadways, as well as other long, narrow lighting. It is generally applicable to where the width of the roadway does not exceed 1.75 mes the designed mounting height.



TYPEII BLS The

Type II BLS is a new light distribution developed based on Type II. BLS means back light shield. The light on the back of pole be reduced and the light in front of the pole be increased accordingly. It is generally applicable to where no need or need less light on the back of pole, such as residential area, high way, bridge and etc.



TYPE III

The Type III lens of sunle R14 series street light . In the IESNA Standard, the Type III distribution is meant for roadway lighting, general parking areas and other areas where a larger area of lighting is required. This distribution is intended for luminaires mounted at or near the side of medium width roadways or areas, where the width of the roadway or area does not exceed 2.75 times the mounting height.



TYPE V

The Type V lens of sunle R14 series street light . In the IESNA Standard,It is intended for luminaire mounting at or near center of roadways, center islands of parkway, and intersections. It is also meant for large, commercial parking lot lighting as well as areas where suticient, evenly distributed light is necessary.





5.Installation way

■Installing steps

Turn off the power before installing

Make sure the model, rated voltage and wattage are the same with the design parameters

Check the wire specification ,

Connect the wire,Through the waterproof connector, connect the L/N wire of the street lamp to L/N wire of the city electricity.

1.Put the light into the light stem ( picture 1)

2.Fix the screw of handle ( picture 2)

3.check the installing of the light whether level or not .

4.Adjust the angle into which needed ( picture 3) .

5. Check the the handle screw fixed or not, if loose, should make it tightly, torque is 16NM



6.Packaging

Packing Data

Model No

Sningle BOX

Pcs/CTN

N.W/PCS(kg)

G.W/CTN(kg)

Meas(mm)

R14-110

1

1

5.7

6.75

720*330*170

R14-120

1

1

6.8

8.05

830*340*170

R14-130

1

1

8.3

9.58

950*400*180



7.Attention

This specification is for reference only,we reserve the right to change without notice.

Sunle Lighting Electric Co.,Ltd is renowed for its honest working style, profound technical force, superior quality of product, world-wide marketing web and perfect post-sales service in the field of lighting. It has passed a series of authorizations such as ISO9001:2000, CE, ROHS, ERP, SAA, CB, BSCI CERTIFICATION.


Over the past six years of effort in the Led lighting field, our company specializes in the manufacture of LED street light, LED flood light, LED high bay light, LED panel light, LED catch fish light, Led plant light product, we also can produce the high quality led driver.



All products are exported to Europe, South America, Russia, Southeast, Asia, Middle East and other regions in the world, and they were popular in the international market because of their excellent quality and competitive price. We can develop, design or customize lighting products according to OEM/ODM custimer’ requiremens. Now we are still developing quickly under our own understanding of lighting.


Sunle Lighting Electric Co.,Ltd insist on its own business tenet:QALITY&REPUTIONFIRST. Regular customers and new cuatomers are all welcomed heartily to our company directing, negotiating and establishing the cooperation relationship in various forms. All the colleagues in company will provide you with sincere service and seek common development.


Try to contact us, we are sure you will find more fortune and more happiness with us.
