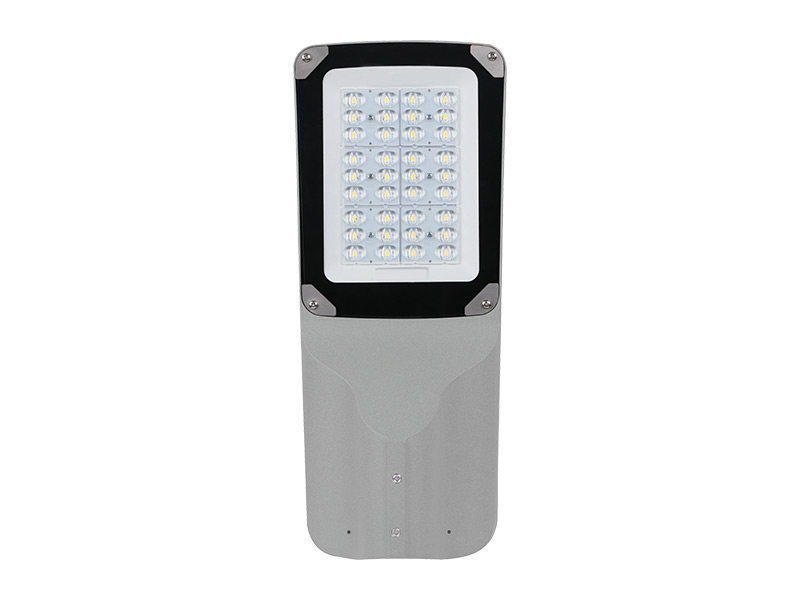

SLR13 Series LED Street Light

SLR13 Series LED Street Light

E-mail:sale@sunlecn.com

Tel:0086-574-88900762

Product Details

■Matters needing attention

■Before installing the lighting fixtures, please read this instruction manual carefully.

■The lighting fixtures should be installed, connected and tested by a certified electrician based on the local regulations.

■Lamps should always be installed or replaced carefully.

■Please check the local voltage in accordance with the product requirements before installation.

■Revamping only can be done when the power is off and the lamp is completely cooled down.

■When clean the lamp, make the power off and let it cool down completely, clean the fixture with a soft cloth and a standard PH neutral detergent, stainless steel should be maintained regularly.

■Don't cover the fixtures with flammable materials.

■Replace should be made by the manufacturer or his service agent or certified electrician in order to avoid a hazard.



■Temperature Characteristics T-ambient 25℃

Temperature

Operating -20~+55℃

Storage -40~+60℃



■Electrical Characteristics

Input Voltage:AC100-277V

50/60Hz PF:>0.9

Power Efficiency:≧0.90



1.Features

■ IP66 waterproof/dust proof/explosion proof/IK09

■ Aluminum shape good at heat dissipation

■ The lamp post can be adjusted to plus or minus 15 degrees It can also be installed vertically

■ Philips SMD 3030/ 5050/ Ra>70/SDCM<6

■ 100,000 times switching cycle before failure

■ Total harmonic distortion(THD)<10%

■ Excellent post light control design, the whole lamp can achieve T II-M, T III-M,That's our advantage

■ Pass 3G vibration test



2.Application

ROAD LIGHTING

It is mainly applied to the road lighting of urban expressway,secondary trunk road, branch road, factory, school, garden, various residential communities and courtyards. The installation height is 6-13m and the installation torque is 16Nm.



3.Product Dimension

Model NO. Size L(mm) Size W(mm)  Size H(mm) Support pole
diameter
R13-15 444.3 184.6 127.1 60
R13-110 499.2 233.9 126.9 60



4.Parameter



Model NO.

Power(W)

Light Source

LED QTY (PCS)

Lens(PCS)

CCT(K)

Lumen(lm/W)

CRI

R13-15-40W

40

3030(5050)

64/24

4

4000k

130/150

>70

R13-15-50W

50

3030(5050)

96/32

6

4000k

130/150

>70

R13-15-60W

60

3030(5050)

96/48

6

4000k

130/150

>70

R13-15-80W

80

3030(5050)

96/48

6

4000k

130/140

>70

R13-110-80W

80

3030(5050)

144/54

9

4000k

130/150

>70

R13-110-100W

100

3030(5050)

144/54

9

4000k

130/150

>70

R13-110-120W

120

3030(5050)

192/72

12

4000k

130/150

>70

R13-110-150W

150

3030(5050)

192/96

12

4000k

130/150

>70



Erp Technical Specification



Item

Symbol

specification/Data

Color Index

CRI

Ra>70

Luminous Efficacy

lm/W

130--160 lm/W

Energy efficiency Class

/

A++

Color consistency in level

/

Max.6SDCM

THD

/

<15%

Starting Time

S

<0.5S

Switching cycle before failure

/

>100,000times

Premature failure rate@1000h

/

0

Lifespan

H

>50000Hrs



Light distribution curve selection



Multiple Light Distribution Options

Street light should fifit with a wide range of applications, such as highway, express way, roadway, avenue, walking path or parking lot lightings. Considering this, SUNLE provides different light distribuTIon lens for the R13 Series street light to achieve best lighting effect in different applications. SUNLE follows the North American IESNA standard in providing the optional lens width ,TypeI, Type II ,Type III and Type V.

Type I is suitable for walking path with 1 lane, Type II is for 2 lanes and Type III is for even more wider road, Type V is for parking lot.

SUNLE selects the most suitable lens for its customers according to the detailed parameters project by project.

TYPE I

The Type I lens of sunle R13 series street light. In the IESNA Standard,The Type I distribution is great for lighting walkways, paths and sidewalks. It is generally applicable to where the mounting height is approximately equal to the roadway width.



TYPE II

The Type II lens of sunle R13 series street light. In the IESNA Standard,the Type II distribution is used for wide walkways, on ramps and entrance roadways, as well as other long, narrow lighting. It is generally applicable to where the width of the roadway does not exceed 1.75 mes the designed mounting height.



TYPEII BLS

The Type II BLS is a new light distribution developed based on Type II.BLS means back light shield. The light on the back of pole be reduced and the light in front of the pole be increased accordingly. It is generally applicable to where no need or need less light on the back of pole, such as residential area, high way,bridge and etc.



TYPE III

The Type III lens of sunle R13 series street light . In the IESNA Standard,the Type III distribution is meant for roadway lighting, general parking areas and other areas where a larger area of lighting is required. This distribution is intended for luminaires mounted at or near the side of medium width roadways or areas, where the width of the roadway or area does not exceed 2.75 times the mounting height.



TYPE V

The Type V lens of sunle R13 series street light . In the IESNA Standard,It is intended for luminaire mounting at or near center of roadways, center islands of parkway, and intersections. It is also meant for large, commercial parking lot lighting as well as areas where suticient,evenly distributed light is necessary.







5.Installation way

■Installing steps

Turn off the power before installing

Make sure the model, rated voltage and wattage are the same with the design parameters

Check the wire specification ,

Connect the wire,Through the waterproof connector, connect the L/N wire of the street lamp to L/N wire of the city electricity.



1.Put the light into the light stem ( picture 1)

2.Fix the screw of handle ( picture 2 picture 3 )

3.check the installing of the light whether level or not .

4.Check the the handle screw fixed or not, if loose, should make it tightly, torque is 16NM





6.Packaging

Packing Data



Model No Sningle BOX Pcs/CTN N.W/PCS(kg) G.W/CTN(kg) Meas(mm)

R13-15

1

1

3.3

4.2

460*200*140MM

R13-110

1

1

3.9

4.6

520*260*150MM



7.Attention

This specification is for reference only,we reserve the right to change without notice.
