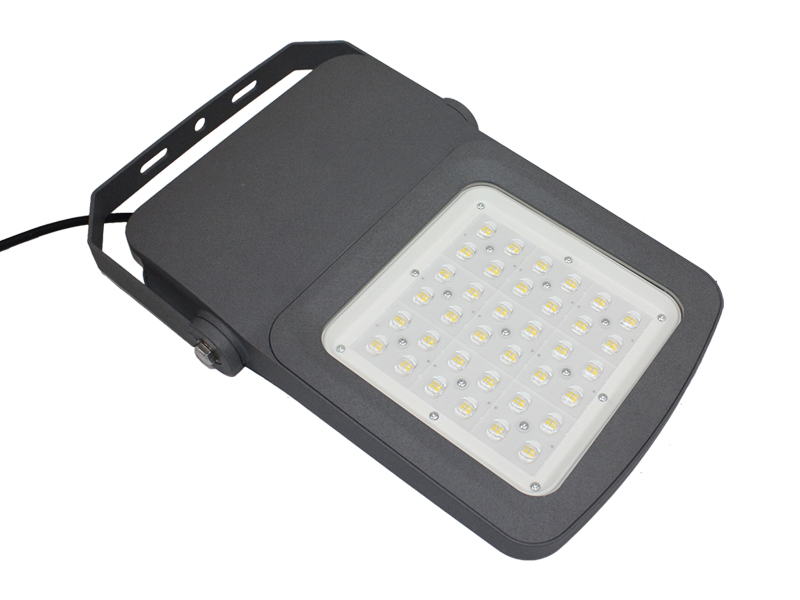

IP66 Outdoor Waterproof Aluminum outdoor flood led lights

E-mail:sale@sunlecn.com

Tel:0086-574-88900762

Product Details

TECHNICAL PARAMETERS:

Series No	SLFR03
Power	20W,30W,40W,50W,60W,80W,100W,120W,150W,180W,200W,240W,300W,400W,500W,600W,700W,800W
Input voltage	100-240/277VAC,50/60Hz
Power Factor	>0.95
Surge Protection	10KV default/20KV(on request)
IP rating	IP66
IK rating	IK09
CCT	2700K 3000K 4000K 5000K 5700K 6500K
CRI	Ra>70(Default)/Ra>80 on request
Operating temperature	'-40°C-+50°C
Beam Angle	30°,60°,90°,120°,P50°,Type I,Type II, Medium,Type III,Medium,Type IV,Type V,Type II BLS
Mounting Option	bracket mounted
Warranty	5 years
Certificaiton	CE,ROHS,ENEC,ENEC+,CB,LM79,TM21>100000 hours,IP66,IK10,IEC62471,IEC 60068-2-6,IEC60598,IEC 61643-1,1
Control:	Photocell,Dali Dimmable,NEMA/Zhaga Socket,Motion Sensor,1-10V dimmable,Zigbee or Lora control

Main construction Data

Type:	Rated Power:	Rated voltage	Power factor	Supply Current	Maximum projected area(m²)	Color temperature	Weight	Dimensions	Remark:
SLFR03-13-30W	30W	AC 100-240V, 50/60Hz	＞0.9	333mA	0.06	.2700-6500K	1.78kg	23027050MM	Electric shock protection class: I External light protection class: IP66 Rated voltage: 100-240V~ 50/60Hz Mounting height:<15M Universal for operating position
SLFR03-13-40W	40W	AC 100-240V, 50/60Hz	＞0.9	333mA	0.06	.2700-6500K	1.78kg	23027050MM
SLFR03-13-50W	50W	AC 100-240V, 50/60Hz	＞0.95	333mA	0.06	.2700-6500K	1.78kg	23027050MM
SLFR03-15-30W	30W	AC 100-240V, 50/60Hz	＞0.95	444mA	0.07	.2700-6500K	2.56kg	32022450MM
SLFR03-15-40W	40W	AC 100-240V, 50/60Hz	＞0.95	444mA	0.07	.2700-6500K	2.56kg	32022450MM
SLFR03-15-50W	50W	AC 100-240V, 50/60Hz	＞0.95	555mA	0.07	.2700-6500K	2.56kg	32022450MM
SLFR03-15-60W	60W	AC 100-240V, 50/60Hz	＞0.95	666mA	0.07	.2700-6500K	2.56kg	32022450MM
SLFR03-110-80W	80W	AC 100-240V, 50/60Hz	＞0.95	888mA	0.12	.2700-6500K	4.7kg	42229162MM
SLFR03-110-100W	100W	AC 100-240V, 50/60Hz	＞0.95	1110mA		.2700-6500K
SLFR03-110-120W	150W	AC 100-240V, 50/60Hz	＞0.95	1660mA		2700-6500K
SLFR03-120-150W	150W	AC 100-240V, 50/60Hz	＞0.95	1660mA	0.18	2700-6500K	6.93kg	52034265MM
SLFR03-120-200w	200W	AC 100-240V, 50/60Hz	＞0.95	2220mA		2700-6500K
SLFR03-140-240w	240W	AC 100-240V, 50/60Hz	＞0.95	2660mA		2700-6500K
FR03-140-300w	300W	AC 100-240V, 50/60Hz	＞0.95	3330mA	0.28	2700-6500K	13.5kg	62045084MM
FR03-140-400w	400W	AC 100-240V, 50/60Hz	＞0.95	4440mA	0.28	2700-6500K	13.5kg	62045084MM
