LED FLOOD LIGHT SLFAP 7

LED FLOOD LIGHT SLFAP 7

E-mail:sale@sunlecn.com

Tel:0086-574-88900762

Product Details

TECHNICAL PARAMETERS:
LED Power Consumption: 10W-200W
Operating Voltage: AC110-130V OR AC220-240V 50/60HZ,
IC Linear driver; AC85-265V 50 / 60HZ, AC driver
LED Chip: San an/Epistar/Bridgelux/other brand chips;
LED Driver: IC Linear driver; AC driver ;
Power Factor: >0.95;
LED Luminous Efficiency: 90-130LM/W
Lamp Efficiency: >0.9;
Material: Die-casting Aluminium body;
IP Rating: IP65;
Warranty: 2-3years
Finishes: White/Black/Gray;



The power range of this flood light with SMD or COB include 10W, 20W,30W, 50W, 100W, 150W, 200W.

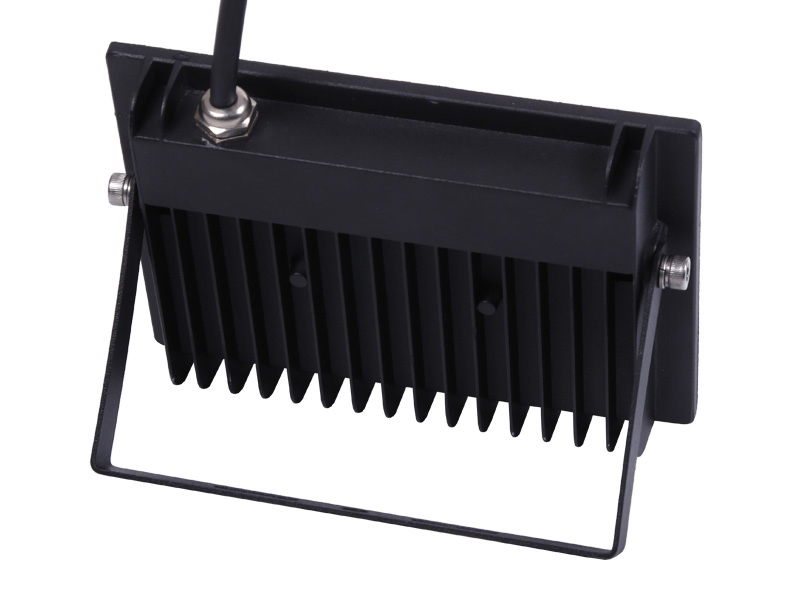

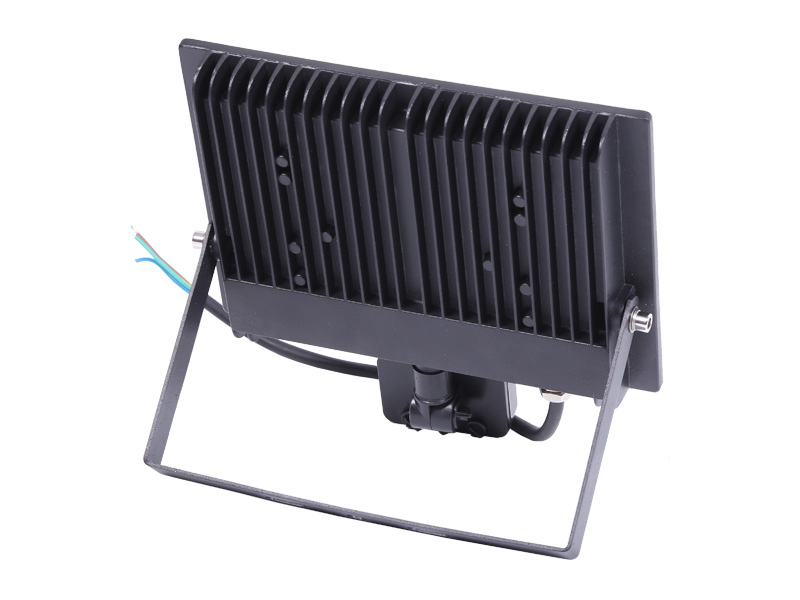

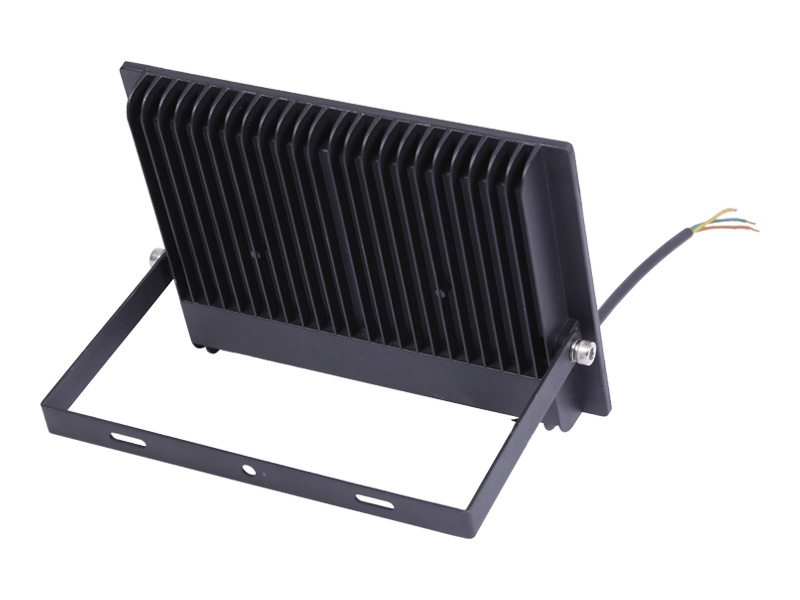

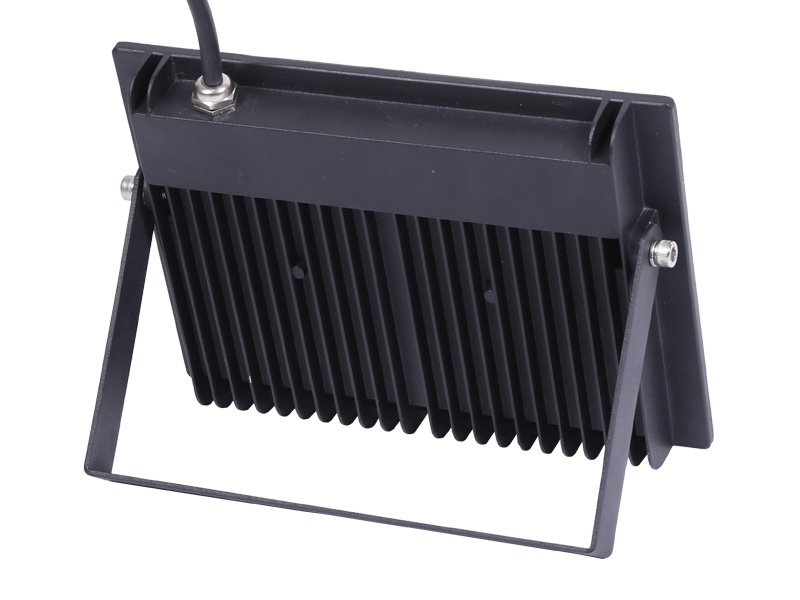

This flood light is very cost-effective. The price is very attractive and it is very popular sold in many areas and countries. The weight is much heavier than normal slim light and the size is much larger than normal slim light too; Heat sink is much wider and thicker in order to distribute the heat better, it uses Nanometer material reflector ,so that it could improve the light efficiency.



Model

Wattage

Dimension (mm)

Voltage

LUMEN

Color Temp(K)

TA

Ra

PF

Driver Type

Led Type

IP

Body Color

SLFAP71

10W

102×76×24

AC 85-265V

800-1000LM

3000/6500K

-45-+75°C >70 >0.90

IC Linear/ AC Driver

SMD

IP65

White/Black/
Grey/Yellow

SLFAP72

20W

133×102×24

1600-2000LM

SLFAP73

30W

173×129×27

2400-3000LM

SLFAP75

50W

221×167×28

4000-5000LM

SLFAP78

80W

262×196×30

6400-7200LM

SLFAP710

100W

331×245×36

8000-9000LM

SLFAP715

150W

382×28×44

12000-13500LM

SLFAP720

200W

423×314×45

16000-18000LM
